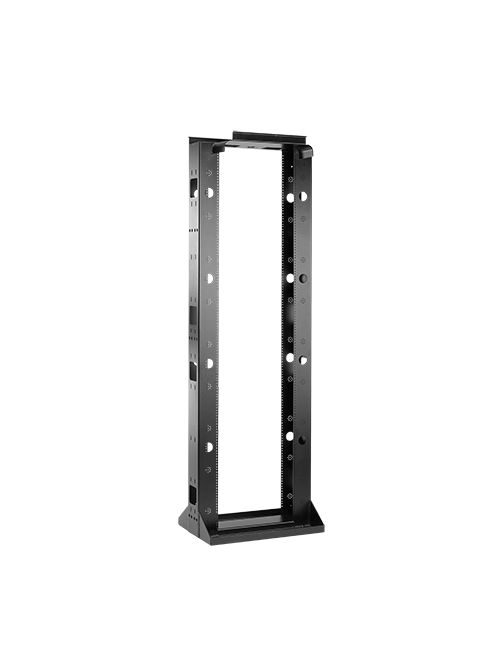

NVENT HOF ESDR19FM45U Open rack 19i
Product image thumbnail 0
Product image thumbnail 1
$1,414.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ESDR19FM45U
North Coast Part # 996815

Features

  • Nominal height is 7 ft. (2.13 m) (45U)
  • Fits 19-in. rack-mount equipment
  • Side rails are tapped on both sides with 12-24 UNC threads for quick installation
  • EIA Universal 5/8 - 5/8 - 1/2 in. vertical mounting-hole pattern matches industry standards and connects to most competitive racks
  • Integral front waterfall top
  • Pre-drilled holes on top to ease runway installation
  • Top and bottom cable entry cutouts
  • Ground provision with ground symbol
  • Full complement of matching components for equipment and cable management
  • Rack is 10-gauge steel, fully welded for maximum rigidity

Specifications

  • Bulletin Number: DOFRS
  • Material: Steel
  • Model Code: 14241
  • Ship Wt. Std. Pkg. (lbs): 120.0
  • Interchangeable: False
  • Finish: Black RAL 9005
  • Catalog Number: ESDR19FM45U
  • A in.: 86.02
  • B in.: 26.75
  • C in.: 18
  • Rack Units: 45
  • Standards: UL 2416 Listed; File No. E230874, || 2500 lb. (1134 kg) rated load || cUL Listed per CSA C22.2 No. 182.4; File No. E230874 || NEBS -Telcordia GR-63-CORE Zone 4: Tested with 500 lb. || (226.8 kg) of equipment installed || EIA 310-D || OSHPD Pre-Approval OPM-0197-13 || NEBS is a trademark of Telcordia || OPM-0197-13 ||

Overview

UPC 78351014241
GTiN 00783510142414
Finish Black RAL 9005
Width 26.75 in
Color Black
Type Rack and Cabinet Accessories
Material Steel
Applications Networking, Storage and Data Center
Depth 18 in
Height 86.02 in
Standard (226.8 Kg) Of Equipment Installed,2500 Lb. (1134 Kg) Rated Load,CUL Listed Per CSA C22.2 No. 182.4,File No. E230874,Meets,OSHPD Approved OPA-2435-07 (750 Lb.)NEBS -Telcordia GR-63-CORE Zone 4: Tested With 500 Lb.,UL 1863 Listed
Family Brand Name Hoffman
Rack Unit 45
Sub Brand Hoffman
