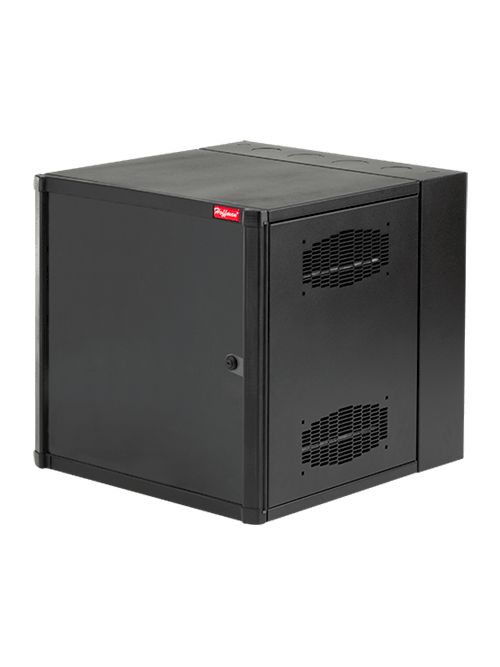

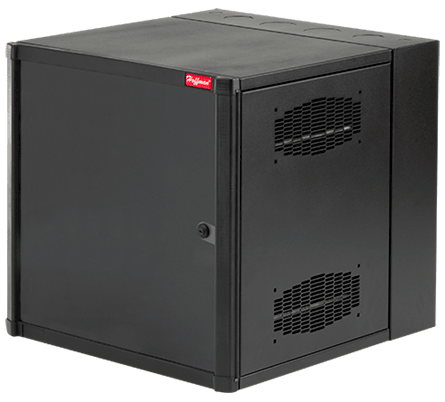

NVENT HOF EWMS362436 AccessPlus 36x

Features

• Front Door (window or solid steel):
• Composite frame (injection molded top and bottom with extruded composite sides)
• 140-degree opening door
• Field-reversible (left or right) hinge
• Quarter-turn key lock, two keys included
• Window door is scratch-resistant 1/4-in. tinted safety glass
• Solid door has 16 gauge steel insert with matching black finish
• Center Section:
• Welded 14 gauge steel
• Solid top of center sections provides protection against falling debris
• Ventilated sides (to which fans can be added)
• Self-latching closure connects center section to wall section
• Self-alignment ramp supports center section to wall section
• Heavy duty center-to-rear section hinge with quick-release self-retained hinge pin eases wall installation
• Rack-Mounting Angles:
• 12 gauge, plated steel
• EIA universal spaced 19-in. rack-mounting holes
• RU marked from bottom to top
• Tapped 10-32 holes, 20 mounting screws included
• Rear Wall Section:
• Welded 14 gauge steel
• Radius corners; no sharp edges
• Available with knockouts or gland plates
• Raised pads for accessory mounting
• Cable tie-down points for cable management
• Keyhole mounting holes allow wall section to be mounted over fasteners and eases installation
• Three cable-entry grommets
• Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
• Vented sides provide cross flow ventilation to improve heat dissipation
• Round corners; no sharp edges
• Self-grounding, plated steel rack angles fully adjustable within center section
• Wall section provides cable entry and cable management with knockouts or gland plates
• Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
• Self-locking center-to-wall section latches in two locations
• Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
• A full line of accessories is available
• Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
• Center section easily removed from rear section; tool-less one-person installation possible
• Vertical cable manager included in 28-in.-wide models

Notes

• B dimension does not include wall-to-center section hinge.
• Cabinets were tested to 2X the listed load capacities without failure. Contact Hoffman if other loading specifications are required.

Specifications

• Bulletin Number: DWDH1
• Material: Steel
• Model Code: 28601
• Ship Wt. Std. Pkg. (lbs): 187.0
• Interchangeable: False
• Catalog Number: EWMS362436
• A in.: 36
• B in.: 24.41
• C in.: 37.5
• Rack Units: 19
• Additional Rack Angles (S=Square Hole T=Tapped Hole): EWMR36T or EWMR36S
• Description: Solid Door Enclosure
• Load Rating: 300 lbs.
• Standards: UL 2416; Type 1; File No. E230874 || cUL Listed per CSA C22.2 No. 182.4; File No. E230874 || EIA 310-D || NEMA/EEMAC Type 1 || EIC 60529 IP20 || Per BICSI TDMM Tenth edition, Chapter 7, || Telecommunication Enclosures (TE)
