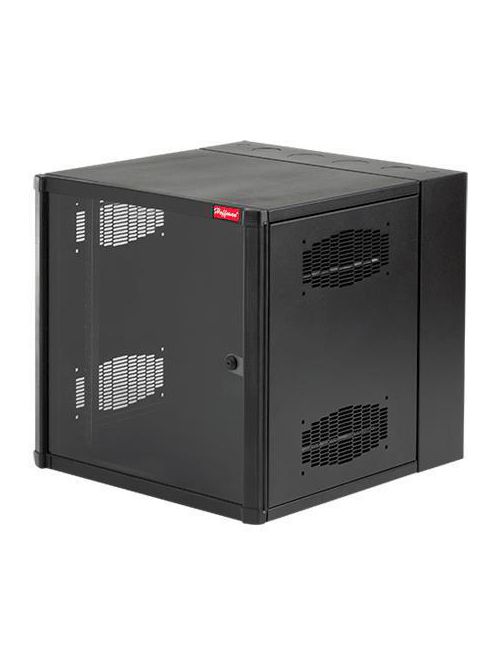

Hoffman EWMW242430 23.62 x 23.62 x 30.01 Inch Steel Wall Mount Window Door Cabinet
$806.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # EWMW242430
North Coast Part # 547822

Features

  • Front Door (window or solid steel):
  • Composite frame (injection molded top and bottom with extruded composite sides)
  • 140-degree opening door
  • Field-reversible (left or right) hinge
  • Quarter-turn key lock, two keys included
  • Window door is scratch-resistant 1/4-in. tinted safety glass
  • Solid door has 16 gauge steel insert with matching black finish
  • Center Section:
  • Welded 14 gauge steel
  • Solid top of center sections provides protection against falling debris
  • Ventilated sides (to which fans can be added)
  • Self-latching closure connects center section to wall section
  • Self-alignment ramp supports center section to wall section
  • Heavy duty center-to-rear section hinge with quick-release self-retained hinge pin eases wall installation
  • Rack-Mounting Angles:
  • 12 gauge, plated steel
  • EIA universal spaced 19-in. rack-mounting holes
  • RU marked from bottom to top
  • Tapped 10-32 holes, 20 mounting screws included
  • Rear Wall Section:
  • Welded 14 gauge steel
  • Radius corners; no sharp edges
  • Available with knockouts or gland plates
  • Raised pads for accessory mounting
  • Cable tie-down points for cable management
  • Keyhole mounting holes allow wall section to be mounted over fasteners and eases installation
  • Three cable-entry grommets
  • Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
  • Vented sides provide cross flow ventilation to improve heat dissipation
  • Round corners; no sharp edges
  • Self-grounding, plated steel rack angles fully adjustable within center section
  • Wall section provides cable entry and cable management with knockouts or gland plates
  • Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
  • Self-locking center-to-wall section latches in two locations
  • Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
  • A full line of accessories is available
  • Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
  • Center section easily removed from rear section; tool-less one-person installation possible
  • Vertical cable manager included in 28-in.-wide models

Notes

  • B dimension does not include wall-to-center section hinge.
  • Cabinets were tested to 2X the listed load capacities without failure. Contact Hoffman if other loading specifications are required.

Specifications

  • Bulletin Number: DWDH1
  • Material: Steel
  • Model Code: 17865
  • Ship Wt. Std. Pkg. (lbs): 92.0
  • Interchangeable: False
  • Catalog Number: EWMW242430
  • A in.: 23.62
  • B in.: 23.62
  • C in.: 30.01
  • Rack Units: 12
  • Additional Rack Angles (S=Square Hole T=Tapped Hole): EWMR24T or EWMR24S
  • Description: Window Door Enclosure
  • Load Rating: 250 lbs.
  • Standards: UL 2416; Type 1; File No. E230874 || cUL Listed per CSA C22.2 No. 182.4; File No. E230874 || EIA 310-D || NEMA/EEMAC Type 1 || EIC 60529 IP20 || Per BICSI TDMM Tenth edition, Chapter 7, || Telecommunication Enclosures (TE)

Overview

UPC 78351017865
GTiN 00783510178659
Finish Black
Width 23.62 in
Color Black
Type ACCESSPLUS II Double-Hinge, Type 1
Material Steel
Applications ACCESSPLUS II Cabinets provide security, equipment access, cooling and support for network and other 19-in. rack-mount equipment. The cabinet has three components: front door, center section and wall section.
Depth 30.01 in
Height 23.62 in
Standard File No. E230874,EIA 310-D,File No. E61997,Chapter 7,EIC 60529 IP20,Type 1,Telecommunication Enclosures (TE),CUL Listed Per CSA C22.2 No. 182.4,UL 508A,Per BICSI TDMM Tenth Edition,NEMA/EEMAC Type 1
Family Brand Name Hoffman
Rack Unit 12
Sub Brand AccessPlus
