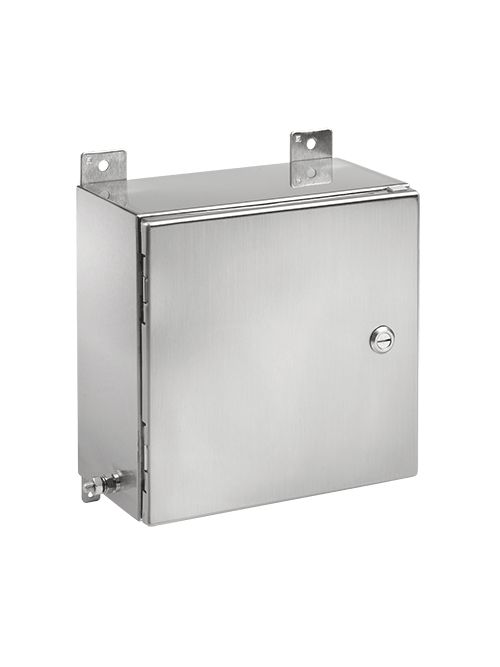

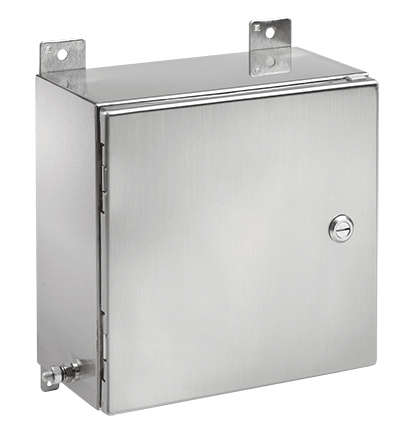

Hoffman EXE12126SS61 12 x 12 x 6 Inch 316 Stainless Steel NEMA 4X Hinged Cover Hazardous Location Enclosure
$1,713.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # EXE12126SS61
North Coast Part # 818953

Features

  • 10-mm brass internal/external bonding provision
  • Type 316 stainless steel quarter-turn latch with slotted insert
  • Large 3-mm-thick, flat gasketed gland plate(s)
  • Continuous seal gasket on door and gland plate(s)
  • Hardware for panel and bonding provisions included
  • Operating temperature range: -40 C to +70 C standard polyurethane gasket
  • Fabricated from Type 316 stainless steel
  • 3-mm thick individual welded-on top and bottom wall-mounting brackets
  • Increased safety: Ex e. IECEx e certified

Notes

  • Intrinsically safe terminal blocks can be installed in populated non-standard enclosures.
  • IECEx populated enclosures require IECEx-certified components specifically listed in Certification (See IECEx SIR 09.0100 for more detail).

Accessories

  • Panels
  • Security inserts and handles
  • Gland Plates
  • Stopping plugs
  • Vent/drains
  • Hazardous Location Thermostat
  • Hazardous Location Heater

Specifications

  • Bulletin Number: HL
  • Model Code: 21475
  • Ship Wt. Std. Pkg. (lbs): 14.28
  • Interchangeable: False
  • Catalog Number: EXE12126SS61
  • A in.: 12
  • B in.: 12
  • C in.: 6
  • F in.: 1.25
  • J in.: 6.00
  • Q in.: 3.75
  • P in.: 9.50
  • No. of latches: 1
  • Optional Panel: CP1212G
  • Standards: Sira 09ATEX3224U || Ex e IIC Gb || Ex tb IIIC Db IP 66 || EN60079-0:2009 || EN60079-7:2007 || EN61241-0:2006 || EN61241-1:2004 || IECEx SIR 09.0099U || Ex e IIC Gb || Ex tb IIIC Db IP 66 || IEC 60079-0:2007-2010 || IEC 60079-7:2006-2007 || IEC 61241-0:2004 || IEC 61241-1:2004 || UL Type 4, 4X, 12; File No. E61997 || cUL C22.2 No. 94 Listed; Type 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 4, 4X, 12 || IEC 60529, IP66

Overview

UPC 78351021475
GTiN 00783510214753
Width 12 in
Size 12.00x12.00x6.00 in
Type ZONEX ATEX- and IECEx-Certified, Type 4X, Hinged Cover
Material SS Type 316
Applications ZONEX Enclosures are designed and certified to meet ATEX Directive 94/9/EC as well as IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications.Hoffmans ATEX Ex e enclosures are not intended for use in explosion-proof or flame-proof applications.
Depth 6 in
Height 12 in
Standard IEC,IEC 60079-7:2006-2007,IECEx SIR 09.0099U,EN60079-0:2009,ATEX,IEC 60079-0:2007-2010,Sira 09ATEX3224U,EN61241-0:2006,EN60079-7:2007,EN61241-1:2004IECEx,ATEX Directive 94/9/EC,Ex Tb IIIC Db IP 66,Ex E IIC Gb
Family Brand Name Hoffman
Number of Latches 1
Sub Brand Hoffman
