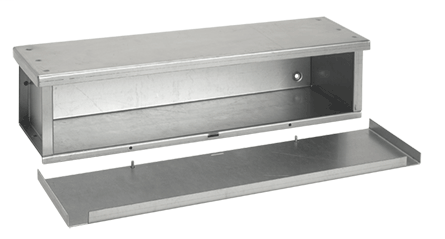

Hoffman F101036RTGV Type 3R Basic Galvanized Trough
$272.73/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F101036RTGV
North Coast Part # 934851

Features

  • 16 or 14 gauge galvanized steel
  • Removable cover
  • Drip-shield top covers sides, front and back
  • Padlock Hasp Kit available
  • No gasketing or knockouts
  • Provision for utility seal
  • Embossed mounting holes on back of enclosure

Accessories

  • Padlock Hasp Kit

Specifications

  • Bulletin Number: F40GT
  • Material: Steel
  • Model Code: 13827
  • Ship Wt. Std. Pkg. (lbs): 41.58
  • Interchangeable: False
  • Finish: Alum/Black
  • Catalog Number: F101036RTGV
  • A in.: 10
  • B in.: 10
  • C in.: 36
  • Gauge: 14
  • Standards: UL 870 Listed; File No. E27524; Raintight || cUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight || NEMA/EEMAC Type 3R || IEC 60529, IP 32

Categories

Overview

UPC 78351013827
GTiN 00783510138271
Finish Alum/Black
Width 10 in
Size 10.00x10.00x36.00 in
Type ECONOTROUGH Galvanized Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 36 in
Height 10 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP 32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
