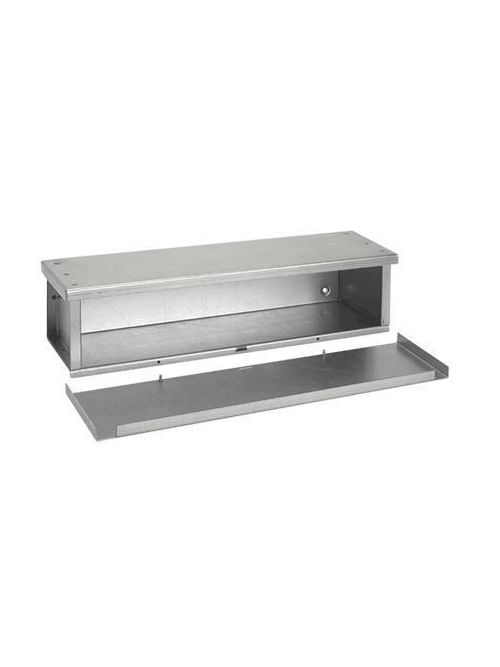

Hoffman F101060RTGV 10 x 10 x 60 Inch NEMA 3R Galvanized Steel Wiring Trough
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$392.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F101060RTGV
North Coast Part # 1015241

Features

  • Removable cover
  • Drip-shield top covers sides, front and back
  • Padlock Hasp Kit available
  • No gasketing or knockouts
  • Provision for utility seal
  • Embossed mounting holes on back of enclosure

Specifications

  • Type: Trough
  • Height (H) (inch): 10
  • Height (H) (millimetre): 254
  • Width (W) (inch): 10
  • Width (W) (millimetre): 254
  • Depth (D) (inch): 60
  • Depth (D) (millimetre): 1,524
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Modification Services: Yes
  • Type Number: Type 3R
  • Wireway: Wiring Troughs
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 10.00x10.00x60.00 in
  • Depth: 60 in

Overview

UPC 78351013831
Item Long Description EconoTrough Galvanized Wiring Trough is used for protecting wire and cable distribution, junctions and terminations in outdoor applications that may be exposed to wet conditions. A Padlock Hasp Kit can be installed for increased security.
GTiN 00783510138318
Finish Galvanized
Width 10 in
Size 10.00x10.00x60.00 in
Type ECONOTROUGH Galvanized Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 1,524 mm
Height 10 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP 32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Thickness 1.9 mm
