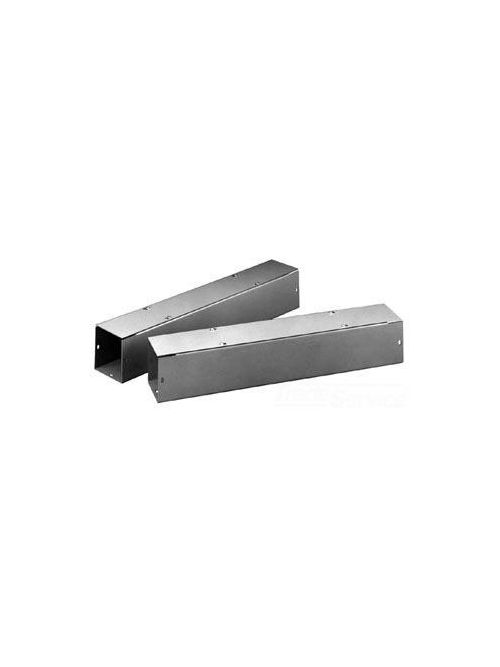

Hoffman F1212T148GVPWK Type 1 Straight Section Wireway with Knockouts
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$366.48/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F1212T148GVPWK
North Coast Part # 1007649

Features

  • Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Flat cover design allows for mounting flush with walls or ceilings
  • Keyhole screw slots on flat covers provide easy access
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts

Specifications

  • Type: Straight Section
  • Height (H) (inch): 12
  • Height (H) (millimetre): 305
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 48
  • Depth (D) (millimetre): 1,219
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Knockout Quantity, 0.50 - 0.75 in: 16
  • Knockout Quantity, 1.00 - 1.25 in: 16
  • Modification Services: Yes
  • IP Rating: IP30
  • Wireway: Lay-In NEMA Type 1 Painted Flat-Cover Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Height: 12 in
  • Knockouts: Yes

Overview

UPC 78351016706
Item Long Description Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Flat cover design allows for mounting flush with walls or ceilings. Keyhole screw slots on flat covers provide easy access. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
GTiN 00783510167066
Finish Powder Coated
Width 12 in
Type Lay-in Painted Flat-Cover, Type 1
Material Steel
Applications Power Distribution
Depth 1,219 mm
Height 12 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 1.9 mm
