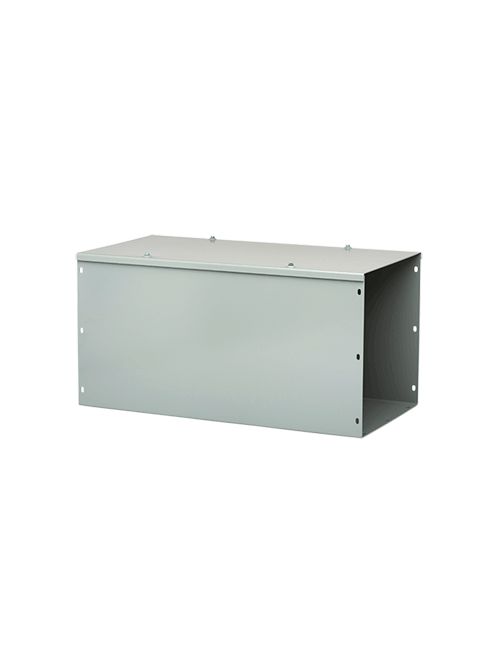

Hoffman F22G48 48 Inch NEMA 1 Gray Steel Lay-In Wireway Straight Section
Product image thumbnail 0
Product image thumbnail 1
$66.35/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F22G48
North Coast Part # 606241

Features

  • Lay-in Hinged-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts

Specifications

  • Type: Straight Section
  • Height (H): 64 millimetre
  • Width (W): 64 millimetre
  • Depth (D): 1,219 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Wireway: Lay-In NEMA Type 1 Hinged-Cover Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.52 millimetre

Overview

UPC 78351052040
GTiN 00783510520403
Finish Polyester Powder Coated
Width 2-1/2 in
Type Straight Section, Lay-In
Material Steel
Applications For Convenient Cable Installation and Maintenance
Depth 48 in
Height 2-1/2 in
Family Brand Name Hoffman
Sub Brand Hoffman
Length 48 in
Color ANSI 61 Gray
Enclosure Type IP30
Cover Type Hinged
Thickness 1.52 Millimetre mm
