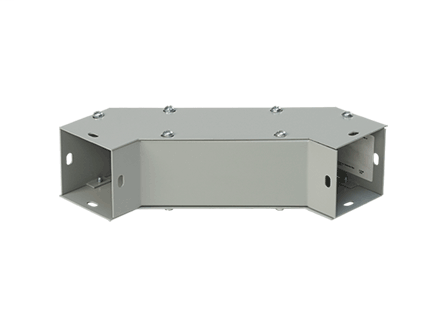

Hoffman F22G90SE 2.5 x 2.5 Inch Steel 90 Degrees Sweep Wireway Elbow
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F22G90SE
North Coast Part # 825866


  • Lay-in Galvanized 90-Degree Sweep Elbows are used for large-radius turns
  • Lay-in feature allows wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system


  • Type: Elbow
  • Height (H) (inch): 2.5
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Wireway: Lay-In NEMA Type 1 Hinged-Cover Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52


GTiN 00783510525705
Finish Powder Coated
Width 2.5 in
Type Wireway Components Used on Multiple Products
Material Steel
Applications Power Distribution
Height 2.5 in
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351052570
Color Gray
Thickness 1.52 mm
