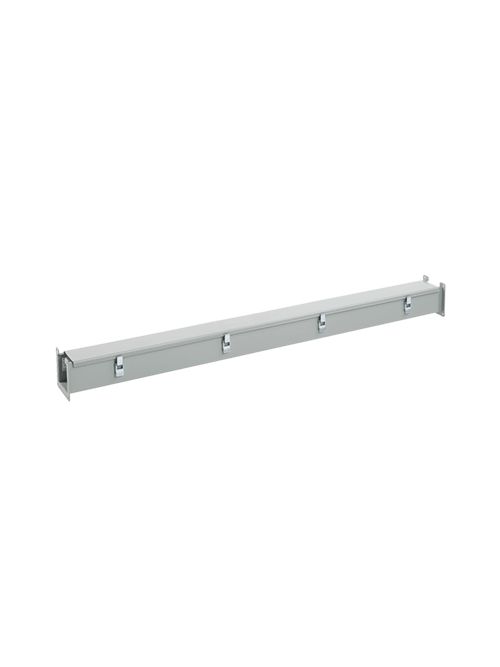

Hoffman F22L120 2.5 x 2.5 x 120 Inch NEMA 12 Gray Steel Lay-In Wireway Straight Section
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$644.63/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F22L120
North Coast Part # 670426

Features

  • Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
  • This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling

Specifications

  • Type: Straight Section
  • Height (H) (inch): 2.5
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Depth (D) (inch): 120
  • Depth (D) (millimetre): 3,048
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Sealing Plate Type: Flat
  • Sealing Plate Quantity: 1
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP54
  • Wireway: Lay-In NEMA Type 12 Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Height: 2.5 in

Overview

GTiN 00783510180706
Length 120 Inch
Finish Powder Coated
Width 64 mm
Color Light Gray
Type Straight Section
Material Steel
Applications Power Distribution
Depth 3,048 mm
Height 64 mm
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351018070
Thickness 1.9 mm
