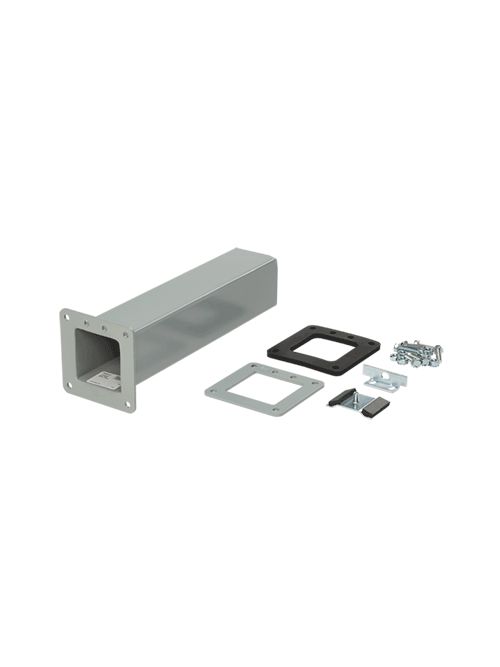

Hoffman F44LX 4 x 4 Inch Steel 90 Degrees Wireway Cut-Off
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$170.44/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F44LX
North Coast Part # 599303

Features

  • Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm)
  • Body comes in two pieces. Shorten body and cover to the desired length and weld together
  • Shorten body to desired length and weld on flange
  • This is not a "lay-in" fitting but often is used when entering an enclosure
  • Fittings are finished with paint over plated surfaces

Specifications

  • Type: Cut-Off Fitting
  • Height (H) (inch): 4
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Sealing Plate Type: 90° Angle
  • Sealing Plate Quantity: 1
  • Modification Services: Yes
  • IP Rating: IP54
  • Wireway: Lay-In NEMA Type 12 Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Height: 4 in

Categories

Overview

UPC 78351018310
Item Long Description Non-Lay-In Hinged Cover Cutoff Fittings are used for lengths up to 12.00 inch (305 mm). Body comes in two pieces. Shorten body and cover to the desired length and weld together. Shorten body to desired length and weld on flange. This is not a "lay-in" fitting but often is used when entering an enclosure. Fittings are finished with paint over plated surfaces.
GTiN 00783510183103
Finish Galvanized
Width 2.5 in
Type Lay-in Painted Galvanized Hinged-Cover, Type 12
Material Steel
Applications Power Distribution
Height 4 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 1.9 mm
