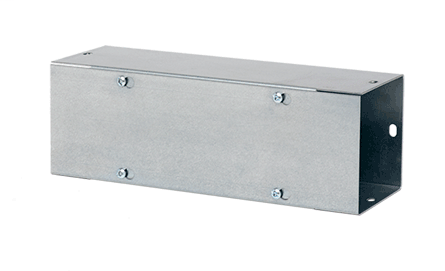

Hoffman F44T160GV 60.00 Inch Straight Section
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$75.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F44T160GV
North Coast Part # 826017

Features

  • Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Flat cover design allows for mounting flush with walls or ceilings
  • Keyhole screw slots on flat covers provide easy access. Galvanized material provides superior corrosion protection for outdoor applications
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.

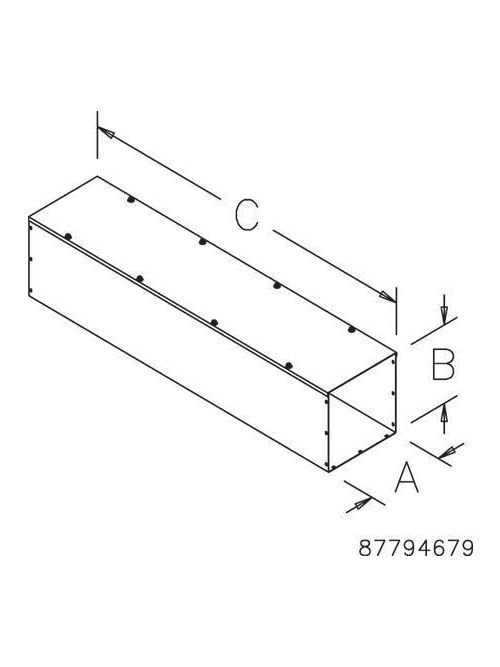

Specifications

  • Type: Straight Section
  • Height (H) (inch): 4
  • Height (H) (millimetre): 102
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 60
  • Depth (D) (millimetre): 1,524
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: No
  • Type Number: Type 1
  • Wireway: Lay-In NEMA Type 1 Galvanized Wireway
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Height: 4 in
  • Knockouts: No

Categories

Overview

UPC 78351088200
Item Long Description Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Flat cover design allows for mounting flush with walls or ceilings. Keyhole screw slots on flat covers provide easy access. Galvanized material provides superior corrosion protection for outdoor applications. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
GTiN 00783510882006
Width 4 in
Type Lay-in Galvanized Flat-Cover, Type 1
Material Steel
Applications Power Distribution
Depth 1,524 mm
Height 4 in
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Galvanized
Thickness 1.52 mm
