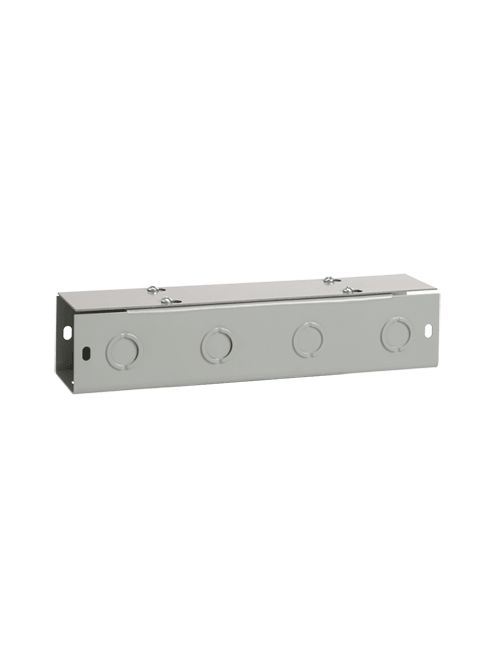

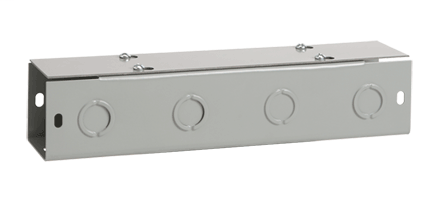

Hoffman F44T160GVP Type 1 Straight Section Wireway
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 10 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F44T160GVP
North Coast Part # 830


  • Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Flat cover design allows for mounting flush with walls or ceilings
  • Keyhole screw slots on flat covers provide easy access
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts


  • Type: Straight Section
  • Height (H) (inch): 4
  • Height (H) (millimetre): 102
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 60
  • Depth (D) (millimetre): 1,524
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: Yes
  • Type Number: Type 1
  • Wireway: Lay-In NEMA Type 1 Painted Flat-Cover Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Height: 4 in
  • Knockouts: No


GTiN 00783510360696
Finish Powder Coated
Width 4 in
Type Lay-in Painted Flat-Cover, Type 1
Material Steel
Applications Power Distribution
Depth 1,524 mm
Height 4 in
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351036069
Color Gray
Thickness 1.52 mm
