Hoffman F44W120SS 4 x 4 x 120 Inch NEMA 4X Gray 304 Stainless Steel Feed-Through Wireway Straight Section
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,465.44/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F44W120SS
North Coast Part # 156005

Features

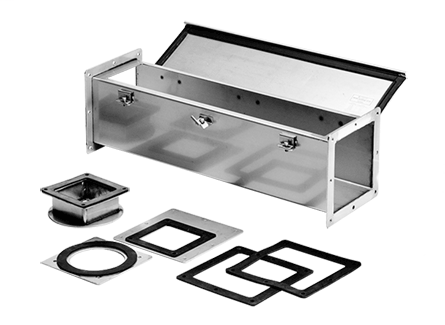

  • Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs
  • Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications
  • The traditional closed-loop design has an opening on one side for easy access to wires and cables
  • Sections are available in lengths from 12 inch to 120 inch

Specifications

  • Type: Straight Section
  • Height (H) (inch): 4
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Depth (D) (inch): 120
  • Depth (D) (millimetre): 3,048
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Wireway: Stainless Steel Feed-Through NEMA Type 4X Wireway
  • Color: Unpainted
  • Finish: No. 2B
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.59
  • Height: 4 in

Overview

UPC 78351015720
Item Long Description Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs. Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables. Sections are available in lengths from 12 inch to 120 inch.
GTiN 00783510157203
Length 120 in
Finish Powder Coated
Width 102 mm
Type Straight Section
Material Stainless Steel
Applications Corrosive Environments; Hygienic Environments; Power Distribution
Depth 3,048 mm
Height 102 mm
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.59 mm
