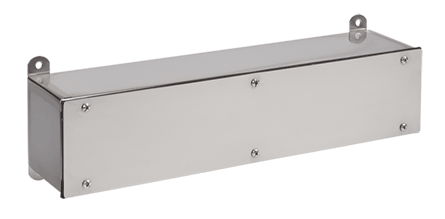

NVENT HOF F6624SCSS WIRE TROUGH TYP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$390.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F6624SCSS
North Coast Part # 1341841

Features

  • Seams continuously welded and ground smooth
  • Oil-resistant gasket and adhesive
  • Captivated stainless steel cover screw threaded into sealed walls
  • No holes or knockouts

Specifications

  • Type: Trough
  • Height (H) (inch): 4
  • Height (H) (millimetre): 101.6
  • Width (W) (inch): 4
  • Width (W) (millimetre): 101.6
  • Depth (D) (inch): 24
  • Depth (D) (millimetre): 609.6
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Cover Screw Quantity: 6
  • Type Number: Type 3R
  • Wireway: Wiring Troughs
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.59
  • Color: Unpainted
  • Door Thickness (gauge): 14
  • Door Thickness (millimetre): 1.98
  • Finish: No. 2B

Related Products

Accessory

  • STSCHDL

Overview

UPC 78351030587
Item Long Description Stainless Steel Screw-Cover Wiring Trough, Type 4X is used for protecting wire and cable distribution, junctions and terminations in outdoor or corrosive applications in which frequent access is not needed.
GTiN 00783510305871
Width 4 in
Material Stainless Steel
Height 4 in
Number of Screws 6
Family Brand Name Hoffman
Cover Gauge 12
Body Gauge 16
Type Stainless Steel Screw-Cover Wiring Trough, Type 4X
Applications Corrosive Environments; Hygienic Environments; Power Distribution
Finish Stainless Steel
Depth 609.6 mm
Body Thickness 1.59 mm
