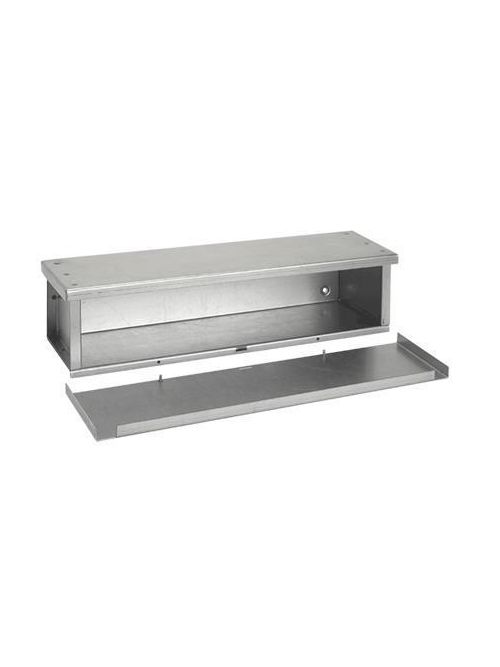

Hoffman F6672RTGV Type 3R Basic Galvanized Trough
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$298.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F6672RTGV
North Coast Part # 753805

Features

  • Removable cover
  • Drip-shield top covers sides, front and back
  • Padlock Hasp Kit available
  • No gasketing or knockouts
  • Provision for utility seal
  • Embossed mounting holes on back of enclosure

Specifications

  • Type: Trough
  • Height (H) (inch): 6
  • Height (H) (millimetre): 152
  • Width (W) (inch): 6
  • Width (W) (millimetre): 152
  • Depth (D) (inch): 72
  • Depth (D) (millimetre): 1,829
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Modification Services: Yes
  • Type Number: Type 3R
  • Wireway: Wiring Troughs
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 6.00x6.00x72.00 in
  • Depth: 72 in

Categories

Overview

GTiN 00783510138219
Finish Galvanized
Width 6 in
Size 6.00x6.00x72.00 in
Type ECONOTROUGH Galvanized Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 1,829 mm
Height 6 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP 32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 16 AWG
Sub Brand Hoffman
Product UPC 78351013821
Thickness 1.52 mm
