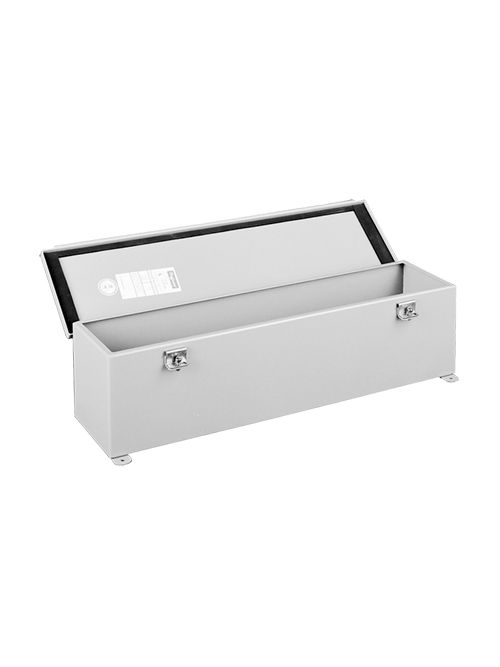

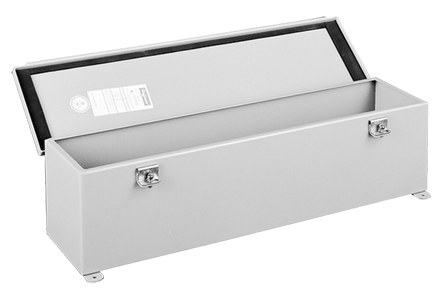

WIRING TROUGH 6.00X6.00X72.00
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$668.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F66T72HC
North Coast Part # 544150

Features

  • Ends and seams continuously welded and ground smooth
  • No holes or knockouts
  • Butt hinges
  • External screw clamps
  • Oil-resistant gasket and adhesive

Specifications

  • Type: Trough
  • Height (H) (inch): 6
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Clamp Quantity: 5
  • Mounting Bracket Quantity: 3
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP60
  • Wireway: Wiring Troughs
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 6.00x6.00x72.00 in
  • Depth: 72 in

Categories

Overview

UPC 78351016730
Item Long Description Hinged-Cover Wiring Trough, Type 12 is used for protecting wire and cable distribution, junctions and terminations in a variety of applications. This wiring trough meets basic functionality requirements for moist or dirty applications, with the added feature of a hinged, screw clamp cover for easy access.
GTiN 00783510167301
Finish Galvanized
Width 2.5 in
Size 6.00x6.00x72.00 in
Color Gray
Type Hinged-Cover Wiring Trough, Type 12
Material Steel
Applications Power Distribution
Depth 72 in
Height 6 in
Standard CSA,File No. 42184,File No. E27524,IEC 60529,IP55,JIC Standards EGP-1-1967 And EMP-1-1967,NEMA Type 12,Type 1,UL 870 Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 mm
