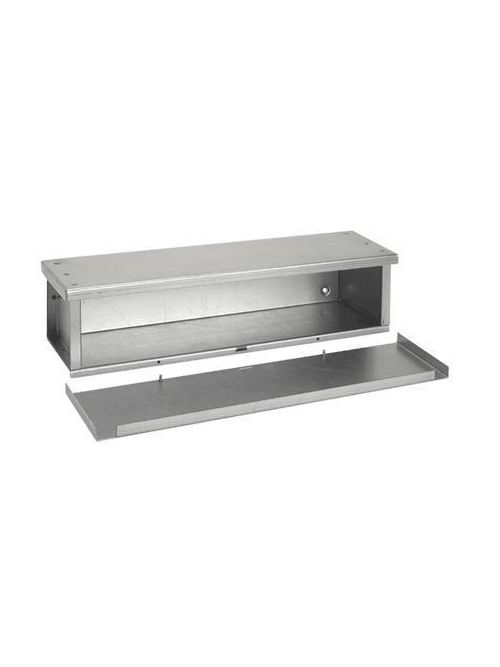

Hoffman F88116RTGV 8 x 8 x 116 Inch NEMA 3R Galvanized Steel Wire Trough
Product image thumbnail 0
Product image thumbnail 1
$609.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F88116RTGV
North Coast Part # 1006661

Features

  • Removable cover
  • Drip-shield top covers sides, front and back
  • Padlock Hasp Kit available
  • No gasketing or knockouts
  • Provision for utility seal
  • Embossed mounting holes on back of enclosure

Specifications

  • Type: Trough
  • Height (H): 203 millimetre
  • Width (W): 203 millimetre
  • Depth (D): 2,946 millimetre
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Modification Services: Yes
  • Type Number: Type 3R
  • Wireway: Wiring Troughs
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351013825
GTiN 00783510138257
Finish Galvanized
Width 8 in
Size 8.00x8.00x116.00 in
Type ECONOTROUGH Galvanized Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 116 in
Height 8 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP 32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
