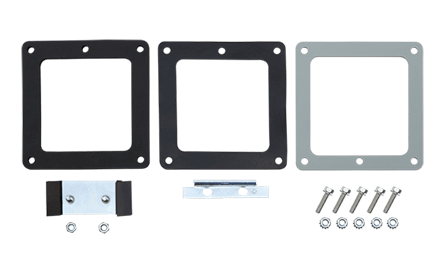

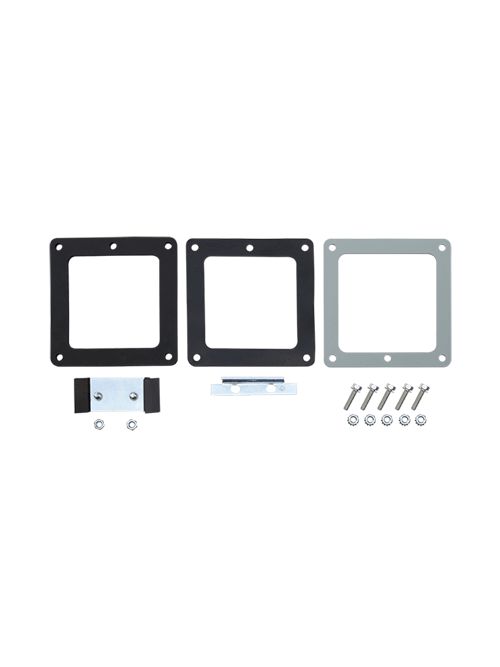

Hoffman F88LB 8 x 8 Inch NEMA 12 Gray Steel Lay-In Wireway Box Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$116.61/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F88LB
North Coast Part # 552501

Features

  • Lay-in Hinged-Cover Box Connectors are used for use inside enclosure when wireway is connected to ensure a tight seal
  • When wireway enters an enclosure, a box connector should be used on the inside of the enclosure to maintain environmental rating

Specifications

  • Type: Box Connector
  • Height (H) (inch): 8
  • Height (H) (millimetre): 64
  • Width (W) (inch): 2.5
  • Width (W) (millimetre): 64
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Sealing Plate Type: 90°
  • Sealing Plate Quantity: 1
  • Modification Services: Yes
  • IP Rating: IP54
  • Wireway: Lay-In NEMA Type 12 Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Height: 8 in

Categories

Overview

UPC 78351019370
Item Long Description Lay-in Hinged-Cover Box Connectors are used for use inside enclosure when wireway is connected to ensure a tight seal. When wireway enters an enclosure, a box connector should be used on the inside of the enclosure to maintain environmental rating.
GTiN 00783510193706
Finish Galvanized
Width 2.5 in
Type Lay-in Painted Galvanized Hinged-Cover, Type 12
Material Steel
Applications Power Distribution, Type 12 Lay-In Wireway
Height 8 in
Family Brand Name Hoffman
Sub Brand Hoffman
Length 9.62 in
Color Gray
Thickness 1.9 mm
