Hoffman F88T136GVP Type 1 Straight Section Wireway
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$180.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # F88T136GVP
North Coast Part # 219564

Features

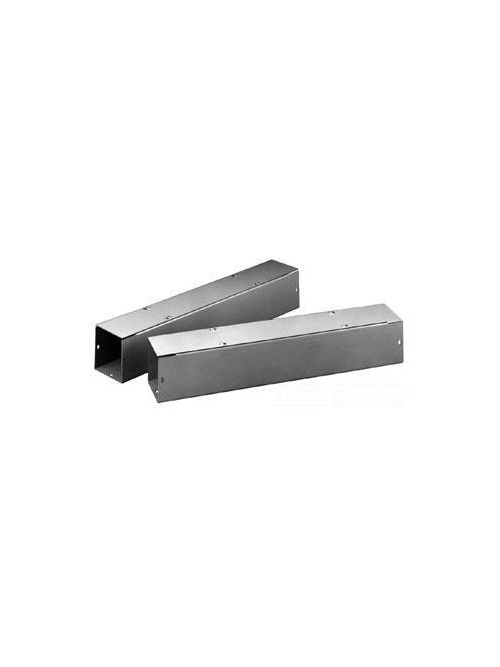

  • Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Flat cover design allows for mounting flush with walls or ceilings
  • Keyhole screw slots on flat covers provide easy access
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts

Specifications

  • Type: Straight Section
  • Height (H) (inch): 8
  • Height (H) (millimetre): 203
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 36
  • Depth (D) (millimetre): 914
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: Yes
  • Type Number: Type 1
  • Wireway: Lay-In NEMA Type 1 Painted Flat-Cover Wireway
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Height: 8 in
  • Knockouts: No

Overview

UPC 78351036279
Item Long Description Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Flat cover design allows for mounting flush with walls or ceilings. Keyhole screw slots on flat covers provide easy access. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
GTiN 00783510362799
Finish Powder Coated
Width 8 in
Type Lay-in Painted Flat-Cover, Type 1
Material Steel
Applications Power Distribution
Depth 914 mm
Height 8 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 1.9 mm
