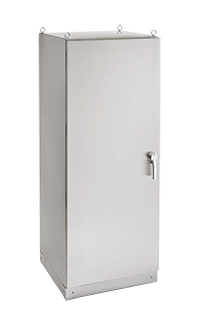

NVENT HOF FS180656SHP0 Single Acces
$12,117.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # FS180656SHP0
North Coast Part # 1827466

Features

  • Internal grid mounting system and ProLine frame compatible for easy and fast panel installation
  • Enclosure with contents to support Standard duty 500Kg (1102 lb.) evenly distributed and Heavy duty 1000Kg (2205 lb.) evenly distributed
  • Uni-body design with seams continuously welded and ground smooth
  • Two-door enclosures provided with a removable center-post for easy panel installation
  • Heavy-duty stainless steel lifting eyes
  • Heavy-duty three-point latching mechanism operated by 316L stainless steel PowerGlide padlocking handle
  • Seamless foam-in-place gasket assures a water-tight and dust-tight seal
  • Body flange trough collar channels liquids and contaminants away from door opening and installed equipment
  • Removable hidden hinges
  • Built-in plinth base that allows for flexible cable entry
  • Gland plate on the bottom offers cable entry options
  • Painted or galvanized back panels can be rear-mounted in single-access enclosures and back-to-back in dual access enclosures
  • Bonding provision on door

Accessories

  • Window kits
  • Door stop kit
  • High-impact thermoplastic data pocket
  • ATEX accessories (i.e. Purge & Pressurization)
  • See ProLine internal accessories for a complete list

Specifications

  • Model Code: 27112
  • Bulletin Number: FS66S
  • Material: Stainless Steel, 316
  • Catalog Number: FS180656SHP0
  • A in.: 73.97
  • B in.: 24.32
  • C in.: 19.11
  • Stainless Steel Type: 316L
  • Gauge: 12
  • Description: One-Door, Single-Access, Heavy-Duty
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. || E61997 || NEM A/EEM AC Type 3, 3R, 4, 4X, 12, 13 || E.I.A. RS-310-D || IEC 60529, IP66, || IEC 62208 ||

Categories

Overview

UPC 78351027112
GTiN 00783510271121
Width 24.32 in
Material Stainless Steel
Depth 19.11 in
Height 73.97 in
Family Brand Name nVent HOFFMAN
Gauge 12 AWG
Size 1879x618x485mm
Type Free-Stand, Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
