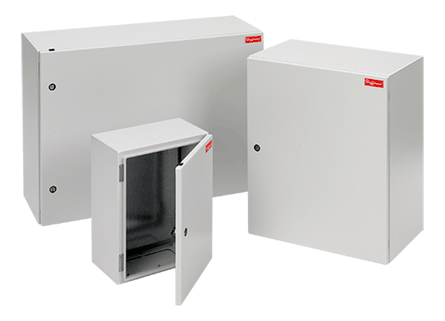

Hoffman G300400200G UL Type 4/12 IP66 Gland Plate Wall Mount Enclosure
$406.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # G300400200G
North Coast Part # 598091

Features

  • 1.2-mm (18 gauge), 1.5-mm (16 gauge) and 2-mm (14 gauge) steel
  • Seamless foam-in-place gasket
  • Reversible door with sealed hinges and hinge brackets
  • Gland plate(s) for enclosure bottom
  • Bonding provision on door; grounding studs (2) on body
  • Full-height galvanized steel back panel included
  • External formed 90-degree body flange channels away liquids
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with 3-point latching and 800 mm or wider
  • Pre-cut gland plate opening(s) in enclosure bottom
  • Quarter-turn latch(es) with 3-mm double-bit insert
  • Corner-formed door
  • Simple, easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
  • Hardware kit includes grounding and sealing hardware
  • Hinged on right side
  • Installation instruction provided

Notes

  • G400300150 does not have a gland plate.

Specifications

  • Bulletin Number: A4G
  • Material: Steel
  • Model Code: 18977
  • Ship Wt. Std. Pkg. (lbs): 18.0
  • Interchangeable: False
  • Catalog Number: G300400200G
  • A in.: 11.81
  • B in.: 15.75
  • C in.: 7.87
  • S in.: 1.55
  • J in.: 5.91
  • D x E in.: 10.04 x 13.98
  • Latch Type: Quarter-turn
  • G x H in.: 10.31 x 14.25
  • P x Q in.: 11.02 x 3.54
  • Body Thickness Gauge: 18
  • Door Thickness Gauge: 18
  • Standards: UL 508A Listed; Type 4, 12; File No. 61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. 61997 || NEMA/EEMAC Type 4, 12, 13 || CSA File No. 42186: Type 4, 12 || IEC 60529, IP66

Categories

Overview

UPC 78351018977
GTiN 7.8351E+11
Finish Polyester Powder Painted
Width 15-3/4 in
Size 300x400X200mm
Color RAL 7035 Light Gray
Type Single Door
Material Steel
Applications Used to House and Protect Electrical and Electronic Components in Industrial Environments
Mounting Type Wall
Depth 7.87 in
Height 11.81 in
Standard 12,13,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. 61997,IEC 6052,NEMA/EEMAC Type 4,Type 4,UL 508A Listed,Wall-mounting Brackets Required To Maintain UL/CSA External Mounting Requirement.
Family Brand Name Hoffman
Gauge 18
Door Gauge 18
Cover Type Standard Hinged, Quarter Turn Latch
Sub Brand Fusion G7
