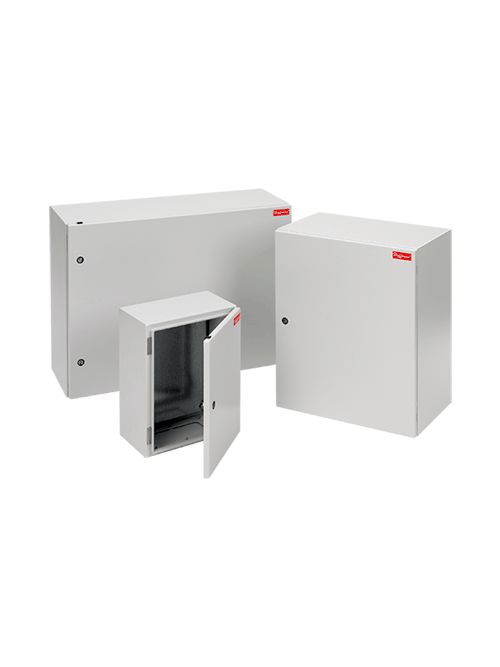

Hoffman G800600325G 31.5 x 23.62 x 12.8 Inch Steel NEMA 4/12 Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$831.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # G800600325G
North Coast Part # 663286

Features

  • Seamless foam-in-place gasket
  • Reversible door with sealed hinges and hinge brackets
  • Gland plate(s) for enclosure bottom
  • Bonding provision on door; grounding studs (2) on body
  • Full-height galvanized steel back panel included
  • External formed 90-degree body flange channels away liquids
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with 3-point latching and 800 mm or wider
  • Pre-cut gland plate opening(s) in enclosure bottom
  • Quarter-turn latch(es) with 3-mm double-bit insert

Specifications

  • Height (H) (inch): 31.5
  • Finish: Powder Coated
  • Height (H) (millimetre): 800
  • Width (W) (inch): 23.62
  • Color: Light Gray
  • Width (W) (millimetre): 600
  • Depth (D) (inch): 12.8
  • Depth (D) (millimetre): 325
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel Size (D x E) (millimetre): 755 x 555
  • Panel Size (D x E) (inch): 29.72 x 21.85
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.52
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Latch Type: Quarter-turn
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color Code: RAL 7035
  • Sub Brand: Fusion G7
  • Size: 800x600X325mm

Related Products

Accessory

  • GSP1000600A
  • G800P600
  • G800SMP325H
  • G800P600H
  • G800SMP325
  • CLKSM7
  • CLKDBM3
  • CLKSLOT
  • GKEY3MMDB
  • GPDLOCK3MM
  • CLKTM7
  • GPDLOCKSLOT
  • GPDLOCKHDL
  • GHPINMS
  • GSM5
  • ADP1
  • GDSTOPK
  • ADP2
  • GHPINSS
  • GGP90180
  • GHS600325
  • GGP90280
  • GGP150180
  • GGP150280
  • GDINRAILBKT
  • ECW8B
  • ECWTD12B
  • ECW12B
  • ECW8BL
  • GSMRBKTS
  • ECW8Y
  • ECW12BL
  • ECW12R
  • CMFK
  • ECW12Y
  • CMTGFT
  • GAMR800
  • GTBMTBKT600
  • AS050
  • ECWTD8B
  • CMFKSS
  • G50SMR325
  • ECW8R

Overview

GTiN 00783510189983
Width 23.62 in
Size 800x600X325mm
Type Wall-Mount, Mild Steel
Material Steel
Applications Controls and Drives
Depth 325 mm
Height 31.5 in
Standard 12,13,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. 61997,IEC 6052,NEMA/EEMAC Type 4,Type 4,UL 508A Listed,Wall-mounting Brackets Required To Maintain UL/CSA External Mounting Requirement.
Family Brand Name Hoffman
Door Gauge 16
Sub Brand Fusion G7
Product UPC 78351018998
Finish Powder Coated
Color Gray
Body Thickness 1.52 mm
