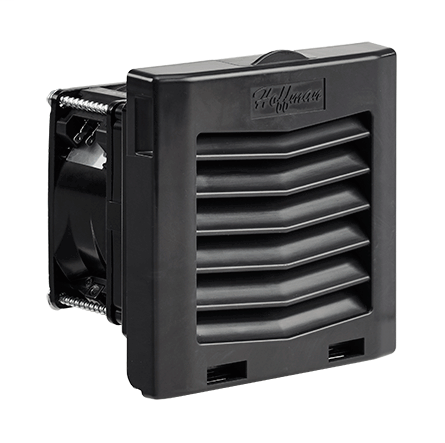

NVENT HOF HF0416413 IP54 4 in FF 11
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$207.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HF0416413
North Coast Part # 1271890

Features

  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)

Specifications

  • Height (H) (inch): 4.42
  • Height (H) (millimetre): 112.268
  • Width (W) (inch): 4.44
  • Width (W) (millimetre): 112.776
  • Depth (D) (inch): 3.65
  • Depth (D) (millimetre): 92.71
  • Airflow (cubic foot per minute): 21
  • Airflow (cubic metre per hour): 36
  • Nominal Voltage (volt): 115
  • Voltage AC (volt): 100-100.00
  • Max Current (ampere): 0.1
  • Operating Temperature (degree Fahrenheit): 14-131.00
  • Operating Temperature (degree Celsius): -10-55.00
  • Material: Plastic
  • Weight (pound): 0.91
  • Weight (kilogram): 0.4
  • Color: Graphite Black
  • Color Code: RAL 9011
  • Finish: Smooth Matte
  • Size: 4.42 x 4.44 x 3.65 in
  • Flow Rate: 21 CFM
  • Voltage Rating: 115 VAC
  • Amperage Rating: 0.1 A
  • Housing Material: Non-metallic

Categories

Overview

UPC 78351034267
Item Long Description HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.
GTiN 00783510342678
Width 4.44 in
Color Black
Voltage 115 Volt
Type Side Mount
Applications For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
Depth 92.71 mm
Height 4.42 in
Weight 0.91 lb
Family Brand Name Hoffman
Housing Material UV-Resistant Plastic
Power Rating 8.5/7.0 W
Max Current 0.1 A
Airflow Rate 21
Max Temperature 131 degrees F
Min Temperature 14 degrees F
Blade Size 4 in
Finish Matte
Size 4.42 x 4.44 x 3.65 in
