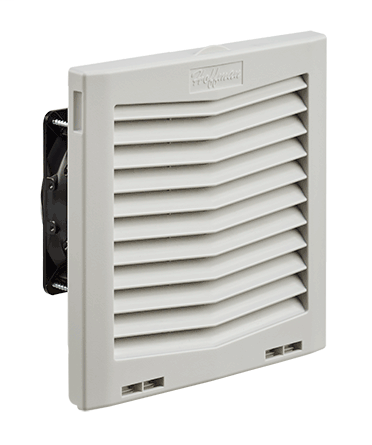

NVENT HF0924414 IP54 9 in FF 24V 70
$310.93/ea
Usually ships within 14 to 22 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HF0924414
North Coast Part # 1276813

Features

  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C

Notes

  • Reference the Spec Sheet in the Downloads tab for complete product specifications.

Accessories

  • Replacement filters
  • Thermostat
  • Rain shroud

Specifications

  • Model Code: 34197
  • Bulletin Number: MCLF
  • Catalog Number: HF0924414
  • Description: HF09 70 CFM (119 m3/hr.) Side-Mount Filter Fan
  • CFM Max: 70
  • Fahrenheit Min.: -4
  • Fahrenheit Max.: 149
  • Max Current (A): 0.35
  • Voltage: 24 VDC
  • Height (in.): 8.19
  • Width (in.): 8.21
  • Depth (in.): 4.15
  • Weight (lb.): 2.13
  • Color: Light Gray
  • Standards: UL/cUL Listed; File No. E482010 || CE || EAC || Type 12 standard on all models || IP54 standard option on all models except HF13 || IP55 standard option on all models except HF04

Categories

Overview

UPC 78351034197
GTiN 00783510341978
Width 8.21 in
Color Gray
Voltage 24 Volt
Material UV-Resistant Plastic
Applications For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
Depth 4.15 in
Height 8.19 in
Weight 2.13 lb
Wattage 8.4 Watt
Temperature Rating -20 to 65 C
Family Brand Name Hoffman
Max Current 0.35 A
Airflow Rate 70
Max Temperature 149 degrees F
Min Temperature -4 degrees F
Blade Dimensions 8.21 in W x 4.15 in D x 8.19 in H
Blade Size 9 in
Finish Lt Gray
Size 8.19 x 8.21 x 4.15 in
Type Open-Loop Cooling
Housing Material Non-metallic
