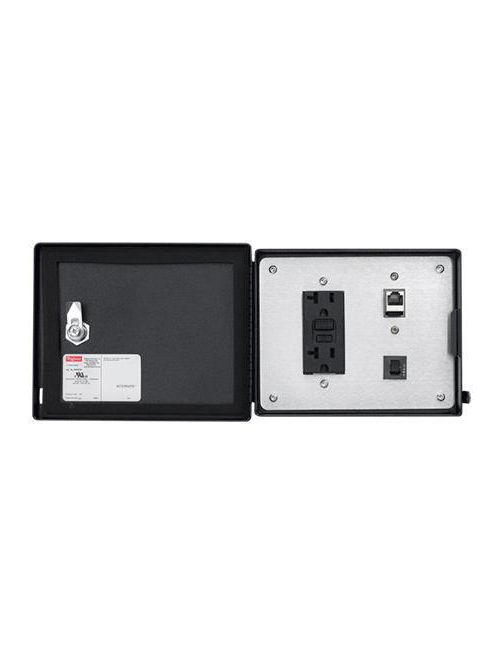

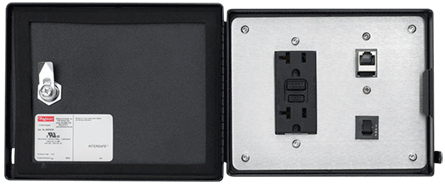

Hoffman HGF5CN 5 Amp 120 VAC Steel Protocol Data Port

$810.00/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Steel and Stainless Steel doors are welded and ground
Back plate is aluminum
All standard configurations include a GFCI or standard duplex receptacle with a 5-A circuit breaker for added safety
Door gasket (between the door and plate assemblies) and plate gasket (between the plate assembly and the enclosure) together provide a tight seal
Template provided for accurate enclosure cutout dimensions
Quarter-turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
Quarter-turn latch with screwdriver slot on polycarbonate models

Material: Mild Steel
Configuration: 120 VAC GFCI receptacle- Shielded RJ45- 5-amp circuit breaker
Primary Connector Termination: Shielded RJ45- 10-ft. shielded cable with male RJ45
Supports Devices Sold By: Allen-Bradley
Modification Services: Yes
Type Number: Type 4
IP Rating: IP66
Accessory Type: InterSafe Data Interface Ports
Color: Black
Finish: Powder Coated
Thickness (T) (gauge): 16
Thickness (T) (millimetre): 1.5
Sub Brand: InterSafe
Size: 143x176x24mm

UPC	78351014786
Item Long Description	InterSafe Data Interface Port allows programming access to devices inside without opening the enclosure door, reducing the risk of exposing to energized components. Many configurations are standard and ready-to-use to meet various applications and programming requirements.
GTiN	00783510147860
Finish	Powder Coated
Size	143x176x24mm
Color	Black
Type	Electrical Accessories
Material	Aluminum,Steel
Applications	Arc Flash Safety; Controls and Drives
Family Brand Name	Hoffman
Sub Brand	InterSafe
Thickness	1.5 mm
