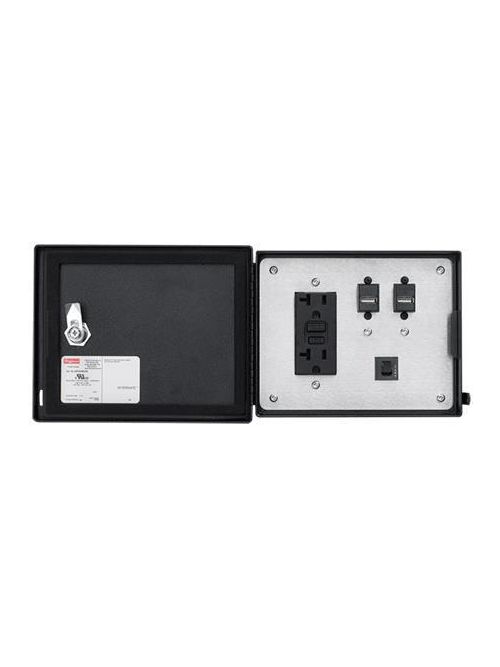

Hoffman HGF5USBUSB GFCI Receptacle Dual USB Data Interface Port
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$941.63/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HGF5USBUSB
North Coast Part # 745423

Features

  • Steel and Stainless Steel doors are welded and ground
  • Back plate is aluminum
  • All standard configurations include a GFCI or standard duplex receptacle with a 5-A circuit breaker for added safety
  • Door gasket (between the door and plate assemblies) and plate gasket (between the plate assembly and the enclosure) together provide a tight seal
  • Template provided for accurate enclosure cutout dimensions
  • Quarter-turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
  • Quarter-turn latch with screwdriver slot on polycarbonate models

Specifications

  • Material: Mild Steel
  • Configuration: 120 VAC GFCI receptacle - USB Type A - USB Type A - 5-amp circuit breaker
  • Primary Connector Termination: USB Type A - 10-ft. cable with female USB Type B connector
  • Secondary Connector Termination: USB Type A - 10-ft. cable with female USB Type B connector
  • Supports Devices Sold By: Computer peripherals
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Accessory Type: InterSafe Data Interface Ports
  • Color: Black
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.5
  • Sub Brand: InterSafe
  • Size: 143x176x24mm

Overview

UPC 78351014796
Item Long Description InterSafe Data Interface Port allows programming access to devices inside without opening the enclosure door, reducing the risk of exposing to energized components. Many configurations are standard and ready-to-use to meet various applications and programming requirements.
GTiN 00783510147969
Finish Powder Coated
Size 143x176x24mm
Color Black
Type Electrical Accessories
Material Aluminum,Steel
Applications Arc Flash Safety; Controls and Drives
Family Brand Name Hoffman
Sub Brand InterSafe
Thickness 1.5 mm
