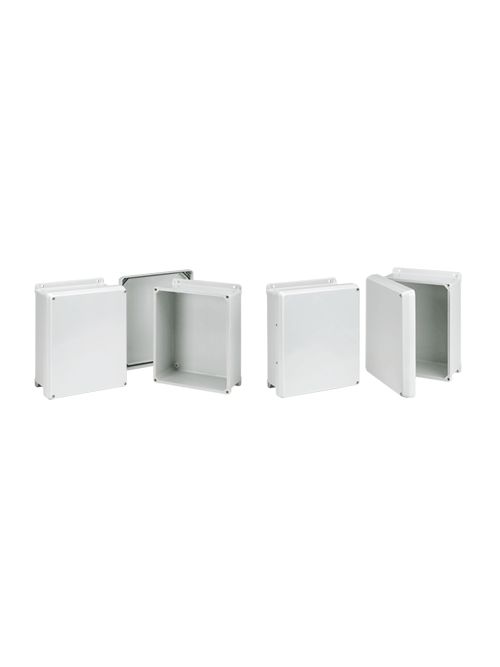

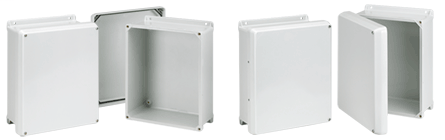

Hoffman HJ1210WLG Light Gray Fiberglass NEMA 4X Flat Cover Enclosure
$155.32/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HJ1210WLG
North Coast Part # 675984

Features

  • Compression-molded fiberglass construction
  • Overlapping flat, solid-covers
  • Cover fastens with screws
  • Type 304 stainless steel piano hinges on hinged models
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15896
  • Ship Wt. Std. Pkg. (lbs): 6.1
  • Interchangeable: False
  • Catalog Number: HJ1210WLG
  • A in.: 11.68
  • B in.: 9.69
  • C in.: 4.62
  • K in.: 1.77
  • L in.: 13.23
  • D in.: 5.42
  • F in.: 5.20
  • G in.: 12.75
  • H in.: 6.00
  • Panel Size in.: 10.75 x 8.88
  • J in.: 4.66
  • W in.: 11.23
  • Q in.: 8.25
  • P in.: 10.25
  • Aluminum Panel: A12P10AL
  • Steel Panel: A12P10
  • I in.: 13.51
  • Door Fasteners: 4 screws
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Categories

Overview

UPC 78351015896
GTiN 7.8351E+11
Finish Untreated
Width 254 mm
Size 13.30x11.29x5.58 in
Color 7035 Light Gray
Type Four Lock, Single Door
Material Fiberglass, Plastic
Applications Controls and Drives; Corrosive Environments
Mounting Type Wall
Depth 120 mm
Height 305 mm
Standard CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
Family Brand Name Hoffman
Cover Type Flat Screw
Sub Brand J-Series
