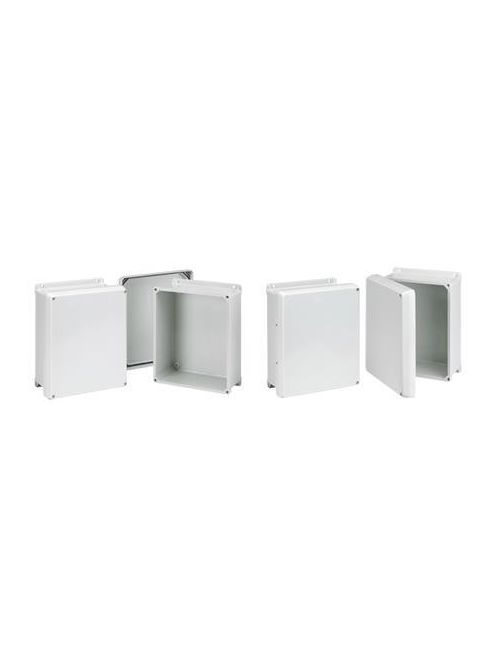

Hoffman HJ606HWLG Light Gray Fiberglass NEMA 4X Hinged Flat Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$122.75/ea
In Stock | 4 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HJ606HWLG
North Coast Part # 599093

Features

  • Compression-molded fiberglass construction
  • Overlapping flat, solid-covers
  • Cover fastens with screws
  • Type 304 stainless steel piano hinges on hinged models
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Specifications

  • Height (H): 145 millimetre
  • Width (W): 145 millimetre
  • Depth (D): 103 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Fiberglass
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size: 124 x 124 millimetre
  • Aluminum Panel: A6P6AL
  • Steel Panel: A6P6
  • Door Fasteners: Hinged, 2 screws
  • Modification Services: Yes
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • IP Rating: IP66
  • Thickness (T): 3.6 millimetre

Overview

UPC 78351015875
GTiN 00783510158750
Width 145 mm
Size 7.31x7.31x4.96 in
Type Single Door
Material Fiberglass
Applications Enclosures Feature a Flat, Overlapping Cover Design that Ensures a More-secure Seal, Available with Removable and Hinged Covers for Application Flexibility
Depth 103 mm
Height 145 mm
Standard CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315,Enclosure Flammability Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
Family Brand Name Hoffman
Sub Brand J Series
Color RAL 7035 Light Gray
Mounting Type Wall
Cover Type Flat Cover with Screws
Finish Matte
Thickness 3.6 Millimetre mm
