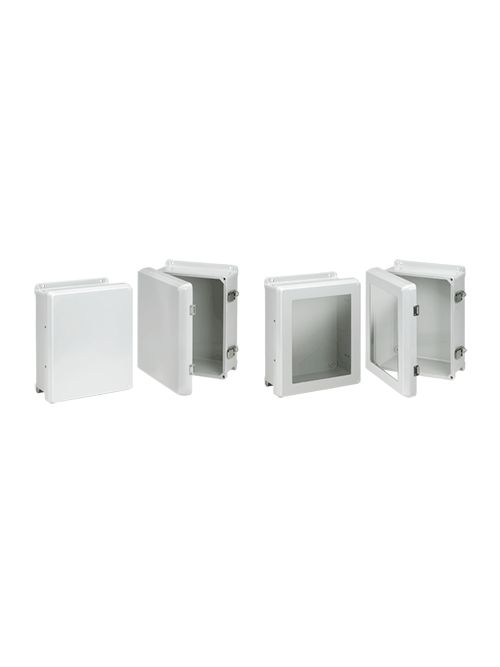

Hoffman HJB1008HWPL1LG Light Gray Fiberglass NEMA 4X Hinged Window Flat Cover Enclosure
$251.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HJB1008HWPL1LG
North Coast Part # 666018

Features

  • Compression-molded fiberglass construction

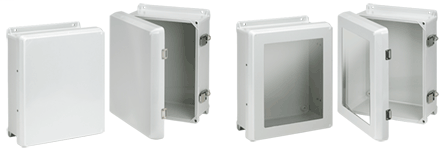

  • Overlapping solid- and window-cover models are available
  • Windows are clear polycarbonate
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Notes

  • A x B x C are internal dimensions.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: HJ
  • Material: Fiberglass
  • Model Code: 15913
  • Ship Wt. Std. Pkg. (lbs): 5.0
  • Interchangeable: False
  • Catalog Number: HJB1008HWPL1LG
  • A in.: 9.71
  • B in.: 7.21
  • C in.: 4.3
  • K in.: 1.67
  • L in.: 11.25
  • D in.: 5.15
  • F in.: 4.88
  • G in.: 10.75
  • H in.: 6.00
  • Panel Size in.: 8.75 x 6.88
  • Window Size M x N in.: 8.00 x 6.00
  • J in.: 4.28
  • W in.: 9.25
  • Q in.: 6.24
  • P in.: 8.25
  • Aluminum Panel: A10P8AL
  • Steel Panel: A10P8
  • I in.: 11.51
  • No. of latches: 1
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315 || Enclosure flammability per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 || Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes

Overview

UPC 78351015913
GTiN 00783510159139
Width 7.21 in
Size 11.31x9.31x5.43 in
Type Flat Cover with Latches, Type 4X
Material Fiberglass
Applications Enclosures feature a flat, overlapping cover design that ensures a more-secure seal. Available with solid and window covers. Latches provide easy access and security.
Depth 4.3 in
Height 9.71 in
Standard NEMA/EEMAC Type 3,UL 508A Listed,4,CUL Listed Per CSA C22.2 No 94,CSA File No. 217184: Type 3,12,4X,13,Type 3,3R,1,Enclosure Flammability Per UL 508A,File No. E54315
Family Brand Name Hoffman
Number of Latches 1
Sub Brand J-Series
