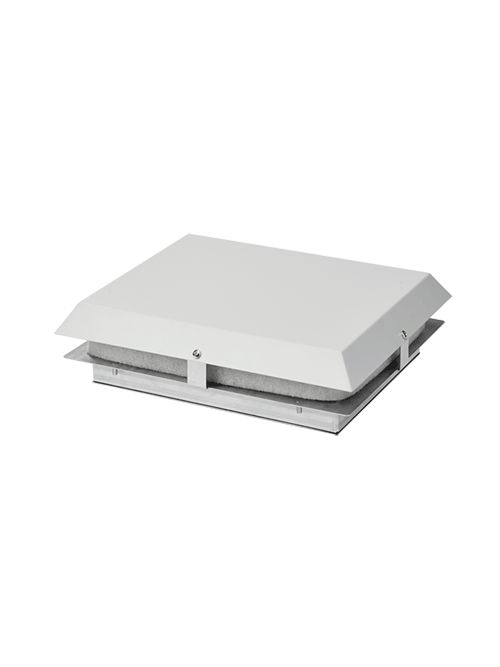

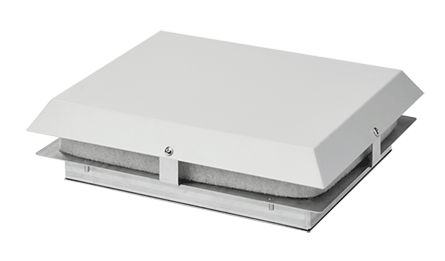

IP54 266 ROOFMNT FAN 115V 7035
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,154.90/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # HR1616414
North Coast Part # 1338448

Features

  • Enclosure top mounting
  • Bolt in place to ensure a tight seal
  • Terminal block connections
  • Free airflow up to 266 CFM (452 m3 /hr.) or 348 CFM (591 m3 /hr.)

Specifications

  • Height (H) (inch): 12.66
  • Height (H) (millimetre): 321.564
  • Width (W) (inch): 15.81
  • Width (W) (millimetre): 401.574
  • Depth (D) (inch): 4.18
  • Depth (D) (millimetre): 106.172
  • Airflow (cubic foot per minute): 266
  • Airflow (cubic metre per hour): 452
  • Nominal Voltage (volt): 115
  • Voltage AC (volt): 100-100.00
  • Max Current (ampere): 0.82
  • Operating Temperature (degree Fahrenheit): 14-131.00
  • Operating Temperature (degree Celsius): -10-55.00
  • Material: Mild Steel
  • Weight (pound): 17.2
  • Weight (kilogram): 7.8
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Size: 12.66 x 15.81 x 4.18 inch
  • Blade Size: 7.48 inch
  • Flow Rate: 250 CFM
  • Voltage Rating: 115 Volts
  • Frequency Rating: 50/60 Hz
  • Phase: 1-phase
  • Amperage Rating: 0.82 Amps
  • Power: 80 Watts
  • Fan Speed: 2880 RPM
  • Sound Pressure Level: 70 dBA
  • Mounting: Top Mount
  • Motor Type: AC
  • Motor Insulation: TOTALLY ENCLOSED WITH CLASS F INSULATION
  • Shaft Diameter: 1.063 inch
  • Ambient Temperature: 14-131 F
  • Housing Material: Mild Steel
  • Blade Material: Polyamide 66 Resin

Related Products

Accessory

  • 89139592R
  • THERM16F
  • THERM16C

Overview

GTiN 00783510342210
Width 15.81 in
Color Gray
Voltage 115 Volt
Depth 106.172 mm
Height 12.66 in
Weight 17.2 lb
Family Brand Name Hoffman
Max Current .82 A
Airflow Rate 266
Max Temperature 131 degrees F
Min Temperature 14 degrees F
Product UPC 78351034221
Finish Powder Coated
Housing Material Mild Steel
Material Steel
