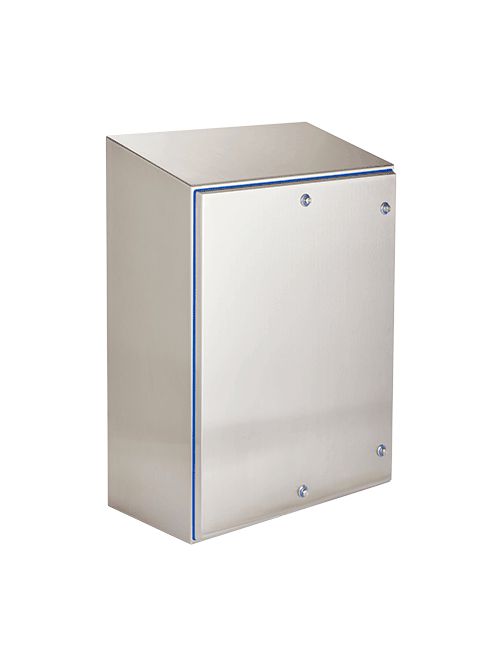

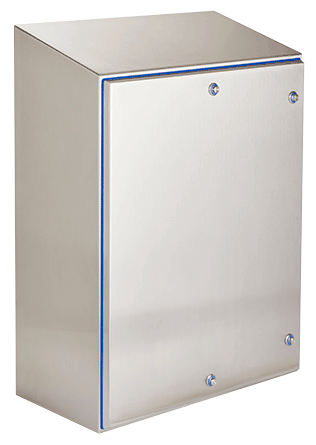

NVENT HOF HSDH161608SS HYSHED Hinge

Features

• Manufactured from 14 gauge Type 304 stainless steel
• 15-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
• Door edges are sloped to facilitate runoff
• Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
• Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
• Internally mounted hinges to reduce bacteria-harboring catch points
• Stainless steel crevice-free latch surfaces to reduce bacteria harboring catch points; uses standard tool to open
• Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
• 105-degree door opening
• Self-grounding latch system with double seal
• Seams continuously welded and ground smooth
• Bonding provision on door; grounding stud on body
• Furnished hardware kit consists of panel mounting kit and grounding kit

Accessories

• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
• IP69K Stand-Off Kit
• Replacement FDA-Grade Silicone Gasket
• Replacement Doors

Specifications

• Bulletin Number: HS1
• Model Code: 30523
• Catalog Number: HSDH161608SS
• A in.: 16.00
• B in.: 16.00
• C in.: 8.00
• Panel: A16P16
• Conductive Panel: A16P16G
• Stainless Steel Panel: A16P16SS6
• A2 in.: 18.11
• Latch Qty.: 2
• Replacement Gasket: HSDH1616GSK
• Standards: UL 508A Listed; Type 4, 4X, 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number || E61997 || UL and cUL Classified to IEC 60529, IP66, IP69; File Number || E503705 || NSF 169 Special Purpose Food Equipment and Devices || 3-A SSI Replacement Parts and System Component Qualification || Certificate || NEMA/EEMAC Type 4, 4X, 12 || DIN 40050-9, IP69K || IEC 60529, IP66, IP69
