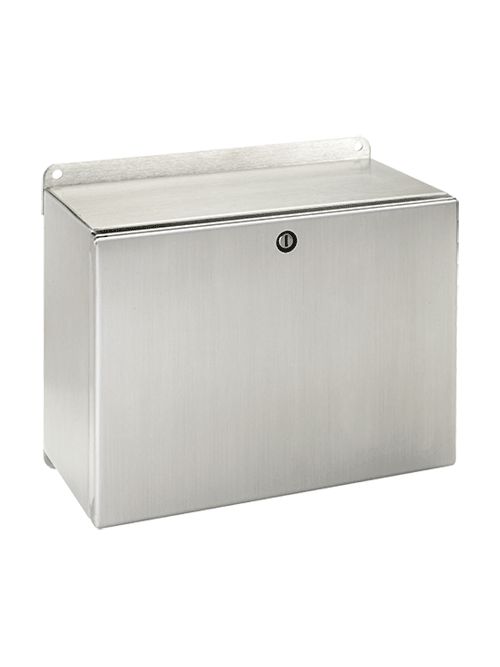

Hoffman LHC234616SS Hinged Cover Type 4X Insert Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$981.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LHC234616SS
North Coast Part # 598076

Features

  • Full width bracket for mounting flexibility
  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Mounting brackets are spot-welded to top and bottom of enclosure
  • Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
  • Seamless foam-in-place gasket
  • M6 ground stud with base flange on body; M6 bonding provision with base flange on door
  • Furnished hardware kit includes panel mounting screws and grounding hardware
  • Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal

Specifications

  • Height (H) (inch): 9.06
  • Height (H) (millimetre): 230
  • Width (W) (inch): 18.11
  • Width (W) (millimetre): 460
  • Depth (D) (inch): 6.1
  • Depth (D) (millimetre): 155
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel: LP2346
  • Clear Space Above Panel (millimetre): 140
  • Clear Space Above Panel (inch): 5.51
  • DIN Rail or Panel Mounting Bracket: LMK23
  • Mounting Holes (millimetre): 431
  • Mounting Holes (inch): 16.99
  • Mounting Studs (J) (millimetre): 416
  • Mounting Studs (J) (inch): 16.36
  • Cover Style: Solid Cover
  • Conductive Panel: LP2346G
  • DIN Rail: LDR3P46
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.98
  • Color: Unpainted
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.59
  • Finish: Brushed #4
  • Sub Brand: InLine
  • Size: 230x460x155mm

Related Products

Accessory

  • AS050SS

Overview

UPC 78351011037
Item Long Description When applications require mounting electrical components the full width of the enclosure, the landscape orientation of this aesthetic InLine Enclosure makes this possible. The full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
GTiN 00783510110376
Finish Powder Coated
Width 460 mm
Size 230x460x155mm
Color Stainless Steel
Type Landscape, Single Lock, Single Door, Gangable
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Mounting Type Wall
Depth 155 mm
Height 230 mm
Standard CSA File Number 42186: Type 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,UL 508A Listed; Type 4, 4X, 12; File Number E61997
Family Brand Name Hoffman
Gauge 14
Cover Type Hinged
Sub Brand Inline
Body Thickness 1.98 mm
