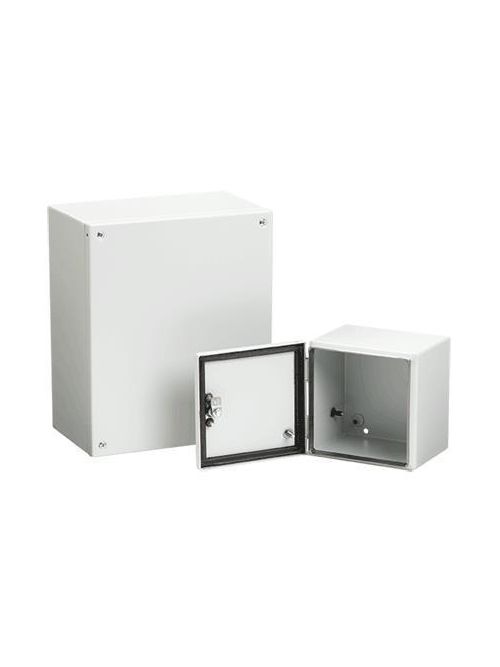

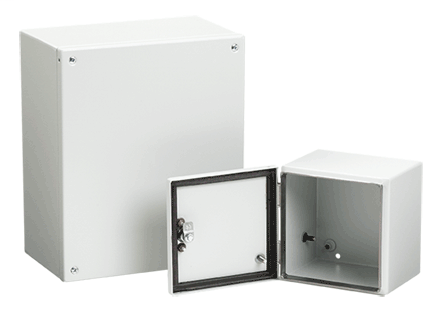

Hoffman LHC252015EMC 9.84 x 7.87 x 5.91 Inch 16 Gauge Steel NEMA 1 Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$623.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LHC252015EMC
North Coast Part # 681121

Features

  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Bonding provision on cover and body
  • Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
  • Plated interior surfaces for gasket contact areas and conduit entries
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
  • Shielding effectiveness greater than 50 dB at 1 GHz

Specifications

  • Height (H) (inch): 9.84
  • Finish: Powder Coated
  • Height (H) (millimetre): 250
  • Width (W) (inch): 7.87
  • Color: Light Gray
  • Width (W) (millimetre): 200
  • Depth (D) (inch): 5.91
  • Depth (D) (millimetre): 150
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Steel Panel: LP2520
  • Conductive Steel Panel: LP2520G
  • Panel Size (D x E) (inch): 9.09 x 7.13
  • Panel Size (D x E) (millimetre): 231 x 181
  • Mounting (G x H) (inch): 9.13 x 5.31
  • Mounting (G x H) (millimetre): 232 x 135
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP54
  • Color Code: RAL 7035
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.5
  • Sub Brand: InLine
  • Size: 250x200x150mm

Related Products

Accessory

  • LP2520G
  • LP2520
  • LMK25
  • LMK20
  • LDR3P20
  • LLGK
  • LLKDBM3
  • LLKSM7SS
  • LLKDB
  • LLKSM8
  • LLKSM7
  • LMFKSS
  • LMFK
  • LLKWK
  • AS050LG

Categories

Overview

GTiN 00783510300890
Finish Powder Coated
Width 7.87 in
Size 250x200x150mm
Color Gray
Type Wall-Mount, Mild Steel
Material Steel
Applications Controls and Drives
Depth 150 mm
Height 9.84 in
Standard CUL Listed Per CSA C22.2 No. 94; Type 1; File No. E61997,IEC 60529, IP40,Mounting Brackets Required To Meet UL/CSA External Mounting Requirement.,NEMA/EEMAC Type 1,UL 508A Listed; Type 1; File No. E61997
Family Brand Name Hoffman
Sub Brand InLine
Product UPC 78351030089
Thickness 1.5 mm
