Hoffman LLB161612 166 x 160 x 102 mm Enclosure Solid Back Body
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$243.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LLB161612
North Coast Part # 1173714

Features

  • Ground stud furnished
  • Drill points on enclosure mark location for pendant or pedestal mounting

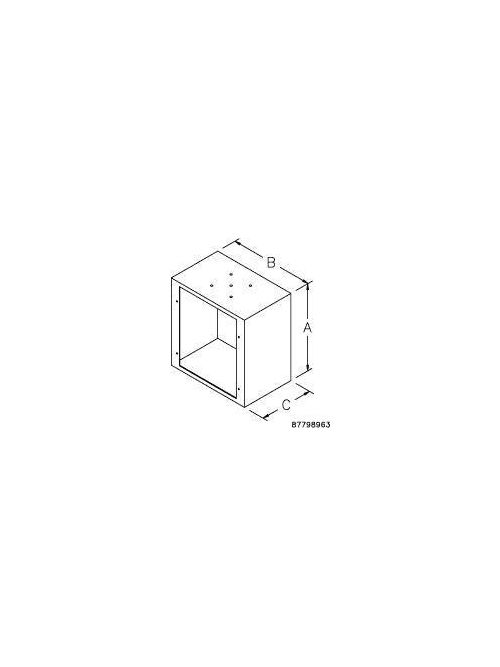

Specifications

  • Height (H) (inch): 6.54
  • Height (H) (millimetre): 166
  • Width (W) (inch): 6.3
  • Width (W) (millimetre): 160
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: IP66
  • Material: Mild Steel
  • Weight (pound): 2.7
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: InLine
  • Size: fits 166x160mm

Overview

UPC 78351049930
Item Long Description Solid-Back Body enclosure for InLine HMI has an open front. Front is configured to install optional fixed bezel or deep-hinged window kit. Panels or DIN rails mount on studs in the rear of the enclosure.
GTiN 00783510499303
Finish Powder Coated
Width 6.3 in
Size fits 166x160mm
Color Gray
Type HMI Accessories
Material Steel
Applications Controls and Drives
Depth 102 mm
Height 6.54 in
Weight 2.7 lb
Family Brand Name Hoffman
Sub Brand InLine
Thickness 1.52 mm
