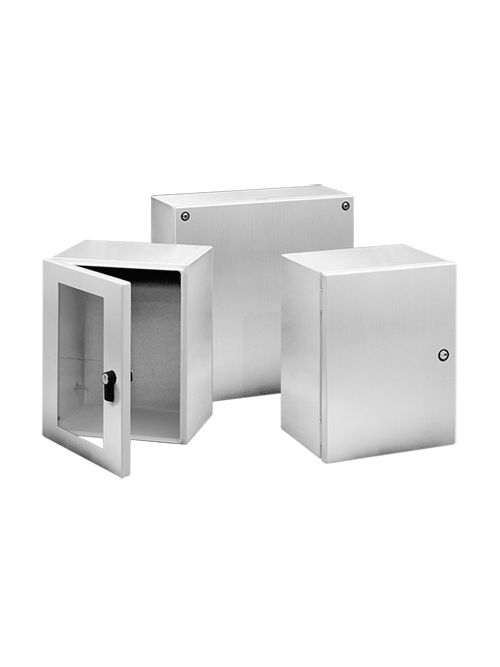

Hoffman LSC151512SS 5.91 x 5.91 x 4.72 Inch 14 Gauge 304 Stainless Steel NEMA 4X Inline Instrumentation Enclosure
Product image thumbnail 0
Product image thumbnail 1
$479.54/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LSC151512SS
North Coast Part # 600142

Features

  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Fastening holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • M6 bonding provision on cover, M6 ground stud in body
  • Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes

Specifications

  • Height (H): 150 millimetre
  • Width (W): 150 millimetre
  • Depth (D): 120 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E): 131 x 131 millimetre
  • Conductive Panel: LP1515G
  • Steel Panel: LP1515
  • Mounting (G x H): 132 x 85 millimetre
  • Stainless Steel Type: 304
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Body Thickness: 1.98 millimetre
  • Color: Unpainted
  • Door Thickness: 1.59 millimetre
  • Finish: Brushed #4

Related Products

Accessory

  • AS050SS

Overview

UPC 78351061760
GTiN 00783510617608
Finish Powder Coated
Width 150 mm
Size 150x150x120mm
Type Single Door, Single Lock
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Mounting Type Wall
Depth 120 mm
Height 150 mm
Standard 12,4X,CSA File No. 42186: Type 4,File No. E61997,IEC 60529,IP66,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Inline
