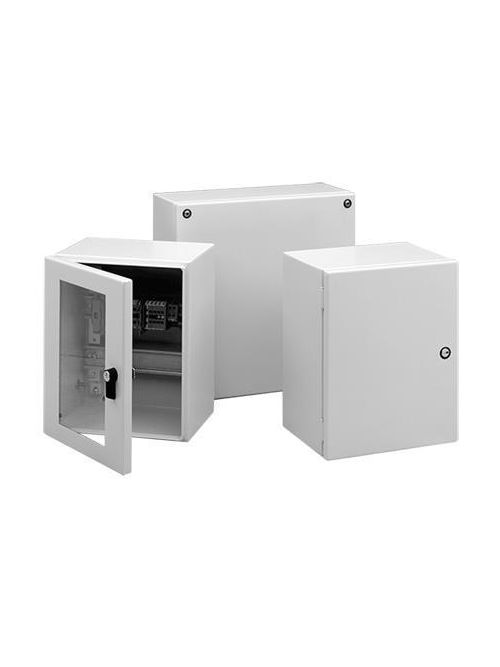

Hoffman LSC353020 13.78 x 11.81 x 7.87 Inch 16 Gauge Steel NEMA 4 Inline Screw Cover Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
$213.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LSC353020
North Coast Part # 212948

Features

  • Metric dimensions
  • 16 gauge steel
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes

Specifications

  • Height (H): 350 millimetre
  • Width (W): 300 millimetre
  • Color: Light Gray
  • Depth (D): 200 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • Finish: Powder Coated
  • NEMA Rating: 4 Watertight
  • Panel: LP3530
  • Conductive Panel: LP3530G
  • Panel Size (D x E): 331 x 281 millimetre
  • Mounting (G x H): 331 x 235 millimetre
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color Code: RAL 7035
  • Thickness (T): 1.52 millimetre

Related Products

Accessory

  • AS050

Overview

UPC 78351061070
GTiN 00783510610708
Finish Powder Coated
Width 11.81 in
Size 350x300x200mm
Color Gray
Type Wall-Mount, Mild Steel
Material Steel
Applications Controls and Drives
Depth 7.87 in
Height 13.78 in
Standard 12,4,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 6,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4 And 12,Type 3,UL 508A Listed
Family Brand Name Hoffman
Sub Brand InLine
Thickness 1.52 Millimetre mm
