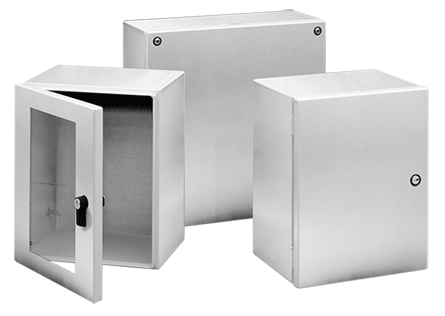

Hoffman LSC353020SS 13.78 x 11.81 x 7.87 Inch 14 Gauge 304 Stainless Steel NEMA 4X Inline Instrumentation Enclosure
$1,051.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LSC353020SS
North Coast Part # 152711

Features

  • 16 gauge covers and doors and 14 gauge bodies; Type 304 or 316L stainless steel
  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Fastening holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • M6 bonding provision on cover, M6 ground stud in body
  • Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes

Notes

  • Purchase panels separately.
  • Catalog numbers ending in 6 are Type 316L stainless steel.

Accessories

  • DIN Rail or Panel Mounting Brackets
  • DIN3 Type Rails
  • Key Inserts
  • Mounting Bracket Kit
  • InLine Panels
  • Wing Knob Latch

Specifications

  • Bulletin Number: A54S
  • Material: Stainless Steel
  • Model Code: 61800
  • Ship Wt. Std. Pkg. (lbs): 14.96
  • Interchangeable: False
  • Catalog Number: LSC353020SS
  • A in.: 13.78
  • B in.: 11.81
  • C in.: 7.87
  • F in.: 7.28
  • Panel Size D x E in.: 13.03 x 11.06
  • Conductive Panel: LP3530G
  • Steel Panel: LP3530
  • Mounting G x H in.: 13.05 x 9.27
  • Stainless Steel Type: 304
  • Standards: UL 508A Listed; Type 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 4, 4X, 12 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66

Overview

UPC 78351061800
GTiN 00783510618001
Finish Powder Coated
Width 300 mm
Size 350x300x200mm
Type Single Door, Single Lock
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Mounting Type Wall
Depth 200 mm
Height 350 mm
Standard 12,4X,CSA File No. 42186: Type 4,File No. E61997,IEC 60529,IP66,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Inline
