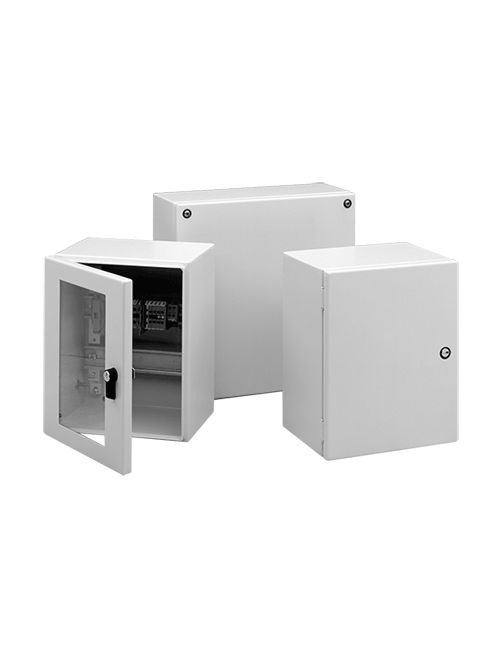

Hoffman LWC201512 7.87 x 5.91 x 4.72 Inch 16 Gauge Steel NEMA 4 Inline Window Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
$173.85/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LWC201512
North Coast Part # 664676

Features

  • Metric dimensions
  • 1.4-mm (16 gauge) steel
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions

Accessories

  • DIN Rail or Panel-Mounting Brackets
  • DIN3 Rails
  • Lock Inserts
  • Mounting-Bracket Kit
  • Panels for Junction Boxes
  • Wing Knob Latch

Specifications

  • Bulletin Number: A54
  • Material: Steel
  • Model Code: 61130
  • Ship Wt. Std. Pkg. (lbs): 4.14
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: LWC201512
  • A in.: 7.87
  • B in.: 5.91
  • C in.: 4.72
  • F in.: 3.98
  • Panel Size D x E in.: 7.13 x 5.16
  • Window Size M x N in.: 5.87 x 2.31
  • Conductive Panel: LP2015G
  • Mounting G x H in.: 7.15 x 3.36
  • Panel: LP2015
  • Standards: Mounting brackets required to meet UL/CSA external mounting requirements. || UL 508A Listed; Type 3, 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3, 4, 12; File No. E61997 || NEMA/EEMAC Type 4 and 12 || CSA, File No. 42186: Type 4 and 12 || IEC 60529, IP66

Overview

UPC 78351061130
GTiN 00783510611309
Finish Powder Coated
Width 150 mm
Size 200x150x120mm
Color 7035 Light Gray
Type Single Lock, Single Door
Material Steel
Applications Controls and Drives
Mounting Type Flush
Depth 120 mm
Height 200 mm
Standard 12,4,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 6,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4 And 12,Type 3,UL 508A Listed
Family Brand Name Hoffman
Cover Type Hinged, Window, Screw, Quarter-Turn Latch
Sub Brand Inline
