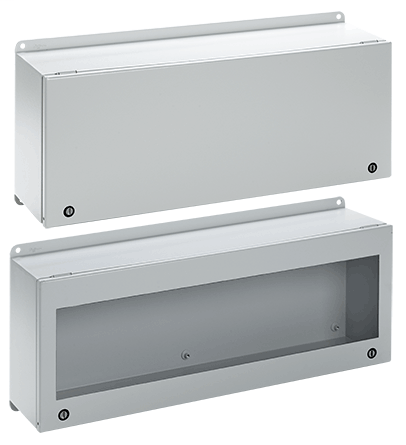

Hoffman LWC239316 9.06 x 36.42 x 6.1 Inch 16 Gauge Steel NEMA 4/12 Hinged Window Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$412.49/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # LWC239316
North Coast Part # 602612

Features

  • Metric dimensions
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover and door
  • Hardware kit includes panel mounting screws and grounding hardware
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latches
  • Door opens 180 degrees

Specifications

  • Height (H) (inch): 9.06
  • Finish: Powder Coated
  • Height (H) (millimetre): 0
  • Width (W) (inch): 36.61
  • Color: Light Gray
  • Width (W) (millimetre): 930
  • Depth (D) (inch): 6.1
  • Depth (D) (millimetre): 155
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Mounting Studs (J) (millimetre): 881
  • Mounting Studs (J) (inch): 34.67
  • Clear Space Above Panel (millimetre): 140
  • Clear Space Above Panel (inch): 5.51
  • Cover Style: Window
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color Code: RAL 7035
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.5
  • Window Size (M x N) (inch): 5.49 x 34.42
  • Window Size (M x N) (millimetre): 139 x 874
  • Sub Brand: InLine
  • Size: 230x930x155mm

Related Products

Accessory

  • LMK23
  • LP2393G
  • LP2393
  • AS050

Categories

Overview

UPC 78351011035
Item Long Description When applications require mounting electrical components the full width of an enclosure, the landscape orientation of this aesthetic InLine Enclosure makes it possible. Full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
GTiN 00783510110352
Finish Powder Coated
Width 925 mm
Size 230x930x155mm
Color RAL 7035 Light Gray
Type Landscape, Single Door, Single Lock
Material Steel
Applications Controls and Drives
Mounting Type Wall
Depth 155 mm
Height 230 mm
Standard 12,4,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66Window Door Enclosures:,NEMA/EEMAC Type 3,Solid Door Enclosures:,T,Type 3,UL 508A Listed
Family Brand Name Hoffman
Cover Type Window Door
Sub Brand Inline
Thickness 1.5 mm
