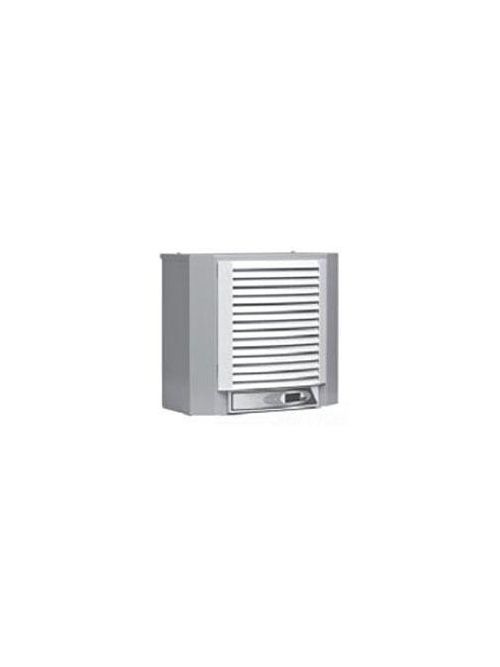

Hoffman M130126G1008 1000 BTU/HR 230 Volt Sealed Enclosure Cooling Air Conditioner
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,919.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # M130126G1008
North Coast Part # 759248

Features

  • Robust reciprocating compressor
  • R134a or R407c earth-friendly refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • UL Listed or Recognized to save customers time and money with agency approvals
  • Operating temperature range from 50 F/10 C to 125 F/52 C
  • Attractive industrial design with minimal use of visible fasteners
  • Reliable mechanical thermostat located behind the filter of the unit; indoor air conditioner models include digital display on ambient side
  • Low-carbon mild-steel sheet-metal cover for rugged factory environments
  • Easy-mount flanges for simple installation
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Indoor Air Conditioner models also include:
  • Electro-Mechanical Thermostat
  • Surge Suppressor
  • Condensate Management System

Notes

  • T-Series or ProAirâ„¢ may be more appropriate. Refer to T-Series A/C and ProAir A/C Chapters. Consult the Factory for availability and catalog number.

Specifications

  • Catalog Number: M130126G1008
  • Nominal BTU/Hr.: 1000
  • Nominal Watts: 293
  • Max Current (A): 2.6
  • Voltage: 200 - 250 VAC
  • Fahrenheit Min.: 50
  • Fahrenheit Max.: 125
  • Height (in.): 13.25
  • Width (in.): 14.25
  • Depth (in.): 7.80
  • Weight (lb.): 46
  • Standards: UL/cUL Listed; Type 12; File No. SA6453 || UR/cUR Recognized || Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure. || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC

Overview

GTiN 00783510737306
Width 14.25 in
Color Gray
Voltage 250 Volt
Type GENESIS Side-Mount Compact Air Conditioner
Applications 13 Series and 17 Series compact air conditioners cool 25- to 40-cu. ft. enclosures in indoor applications.
Depth 7.80 in
Height 13.25 in
Weight 46 lb
Standard CE,EAC,Maintains U/cUL Type 12 Rating When Properly Installed On A UL/cUL Type 12 Enclosure.,UL/cUL Listed; Type 12; File No. SA6453,UR/cUR Recognized,UR/cUR Recognized On Select Models, Reference Performance Data Tables.
Frequency 50/60 Hz
Wattage 293 Watt
Family Brand Name Hoffman
Number of Phases 1 Phase
BTU Hour 1000 BTU
Amperage 2.2/2.1 Amp
Max Current 2.6 A
Max Temperature 125 degrees F
Min Temperature 50 degrees F
Sub Brand Genesis
Product UPC 78351073730
