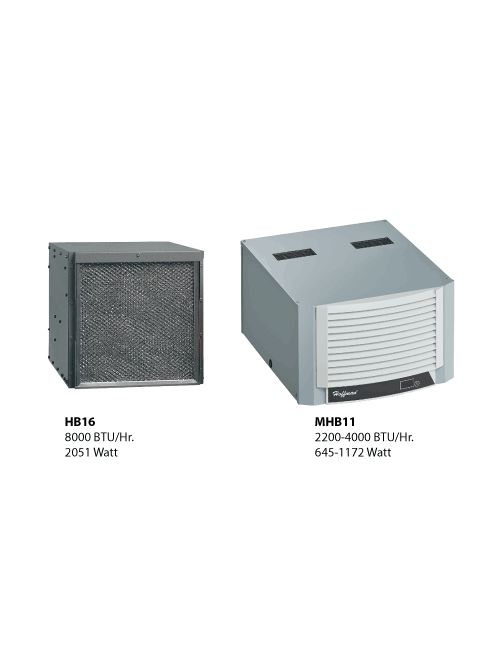

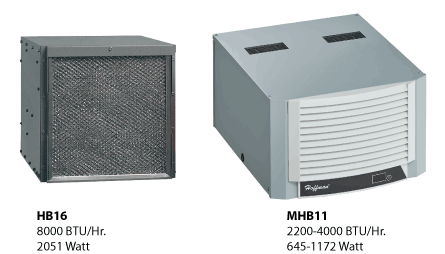

Hoffman MHB110426G306 4000 BTU/HR 230 Volt Sealed Enclosure Cooling Air Conditioner
Product image thumbnail 0
Product image thumbnail 1
$5,041.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # MHB110426G306
North Coast Part # 151672

Features

  • R134a and R407c refrigerant
  • Models for 115, 230 and 460 single-phase VAC power input
  • Operating temperature range from 50 F/10 C to 125 F/52 C
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit

Specifications

  • Height (H): 260 millimetre
  • Nominal Capacity Btu/h: 4,000 British thermal unit per hour
  • Nominal Capacity Watts: 1,172 watt
  • Width (W): 431.8 millimetre
  • Nominal Voltage: 230 volt
  • Voltage AC: 200 - 250 VAC
  • Operating Temperature: 10 degree Celsius
  • Depth (D): 535 millimetre
  • Max Current: 7.5 ampere
  • Protection Rating: NEMA Type 12
  • Remote Access Control: No
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Width: 432 millimetre
  • Min Temperature: 10 degree Celsius
  • Max Temperature: 52 degree Celsius
  • Weight: 49 kilogram
  • Nominal Btu/h: 4,000 British thermal unit per hour
  • Nominal Watts: 1,172 watt
  • Mechanical Advantage: Mild steel sheet metal standard
  • Color: Traffic Gray
  • Color Code: RAL 7042
  • Finish: Powder Coated
  • Thickness (T): 1.21 millimetre

Overview

UPC 78351074320
GTiN 00783510743208
Width 17.00 in
Color Gray
Voltage 250 Volt
Type Air Conditioners
Applications Controls and Drives; Corrosive Environments; Power Distribution
Depth 21.08 in
Height 10.25 in
Weight 49 kg
Standard CE,EAC,Maintains U/cUL Type 12 Rating When Properly Installed On A UL/cUL Type 12 Enclosure.,UL/cUL Listed; Type 12; File No. SA6453,UR/cUR Recognized,UR/cUR Recognized On Select Models, Reference Performance Data Tables.
Frequency 50/60 Hz
Wattage 1172 Watt
Family Brand Name Hoffman
Number of Phases 1 Phase
BTU Hour 4000 BTU
Amperage 8.0/7.5 Amp
Max Current 7.5 A
Max Temperature 125 degrees F
Min Temperature 50 degrees F
Sub Brand Genesis
Finish Powder Coated
Thickness 1.21 Millimetre mm
