6000BTU 460V 3 CNTRL W/COMM
Product image thumbnail 0
Product image thumbnail 1
$6,248.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # N360646G060
North Coast Part # 1004636

Features

  • Narrow design accommodates 12-inch (300-mm) deep cabinets
  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R407c and R134a refrigerants
  • Models for 115, 230 and 400/460 3-phase VAC power input
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
  • Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side

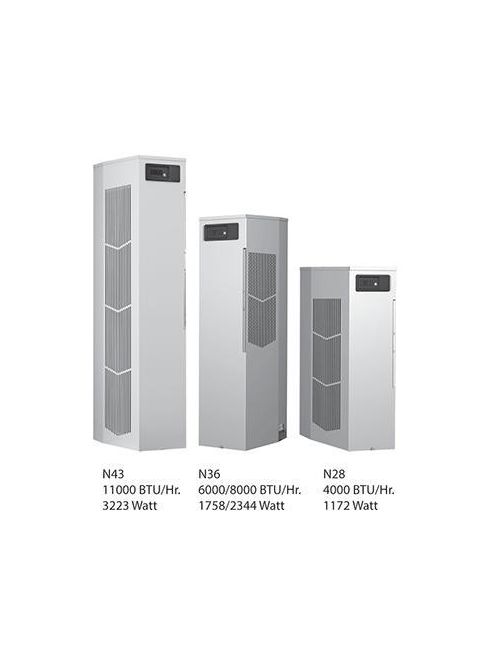

  • Energy efficient rotary compressor on N36 and N43 models
  • Energy efficient reciprocating compressor on N28 models
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications

Specifications

  • Height (H): 914.4 millimetre
  • Nominal Capacity Btu/h: 6,000 British thermal unit per hour
  • Nominal Capacity Watts: 1,757 watt
  • Width (W): 292.1 millimetre
  • Nominal Voltage: 460 volt
  • Number of Phases: 1
  • Voltage AC: 400 - 460 VAC
  • Operating Temperature: -40 degree Celsius
  • Depth (D): 355.6 millimetre
  • Max Current: 1.69 ampere
  • Protection Rating: NEMA Type 4
  • Remote Access Control: Yes
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Nominal Btu/h: 6,000 British thermal unit per hour
  • Nominal Watts: 1,757 watt
  • Min Temperature: -40 degree Celsius
  • Max Temperature: 55 degree Celsius
  • Width: 292.1 millimetre
  • Weight: 47 kilogram
  • Mechanical Advantage: Galvanized Sheet Metal Standard (Optional: Stainless Steel)
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T): 1.21 millimetre

Overview

UPC 78351023916
GTiN 00783510239169
Width 11.5 in
Color Gray
Voltage 460 Volt
Type Air Conditioners
Applications Controls and Drives; Corrosive Environments; Power Distribution
Depth 14 in
Height 36 in
Weight 47 kg
Standard CE,IP 34 On External Loop,IP 56 Internal Loop,Telcordia GR-487 Capable (Outdoor),UL/cUL Listed; Type 12, 3R, 4; 4X Optional; File No. SA6453
Wattage 1757 Watt
Family Brand Name Hoffman
BTU Hour 6000 BTU
Max Current 1.69 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand SpectraCool
Finish Powder Coated
Thickness 1.21 Millimetre mm
