NVENT HOF N360816G060 8000BTU 115V

Features

• Narrow design accommodates 12-in. (300-mm) deep cabinets
• Energy efficient reciprocating compressor on N28 models
• Energy efficient rotary compressor on N36 and N43 models
• R407c and R134a earth-friendly refrigerants
• Models for 115, 230 and 400/460 3-phase VAC power input
• UL Listed to save customers time and money with agency approvals
• Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
• Attractive industrial design with minimal use of visible fasteners
• Reliable mechanical thermostat on enclosure side of the unit; indoor Air Conditioner models include digital display on ambient side
• Galvanized sheet-metal cover for rugged factory and outdoor environments
• Easy-mount flanges for simple installation
• Cut-out adapter options for enclosures with Genesis® air conditioners enable users to easily transition to the new unit
• Dust-resistant condenser coil allows the unit to be run filterless in most applications
• Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
• Mounting hardware, gaskets and user manual furnished with the unit
• Every unit functionally tested before shipping
• Standard Indoor Air Conditioner models also include:
• Active condensate management with heater strip
• Power-off relay for door switch and other system requirements
• Malfunction switch
• Standard Outdoor Air Conditioner models also include:
• Telcordia GR-487 capable
• Corrosion-resistant components
• Malfunction switch
• Compressor heater
• Head pressure control
• 1300 W enclosure heater

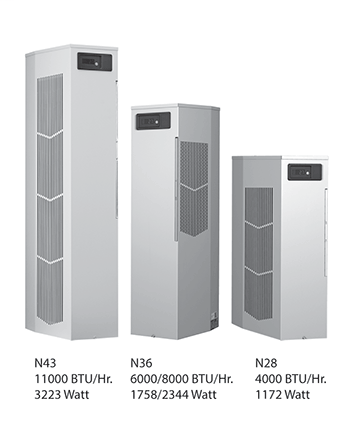

• Nominal cooling capacity:
• N16 800 BTU/Hr. (234 W)
• N21 2000 BTU/Hr. (586 W)
• N28 4000 BTU/Hr. (1172 W)
• N36 6000 & 8000 BTU/Hr. (1758 and 2344 W)
• N43 11000 BTU/Hr. (3223 W)
• Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)

Notes

• Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.
• For G52 400/460 rated voltage, the watts are based on .65 power factor.
• Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.

Specifications

• Model Code: 23917
• Bulletin Number: MCLG
• Catalog Number: N360816G060
• A in.: 36
• B in.: 11.5
• C in.: 14
• Description: Indoor Model with Remote Access Control
• Nominal BTU/Hr.: 8500
• Nominal Watts: 2489
• Max Current (A): 13.3
• Fahrenheit Min.: -40
• Voltage: 100 - 120 VAC
• Fahrenheit Max.: 131
• Height (in.): 36.0
• Width (in.): 11.50
• Depth (in.): 14.00
• Weight (lb.): 106.00
• Standards: UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 || CE || IP 56 Internal Loop || IP 34 on External Loop || Telcordia GR-487 capable (Outdoor)
