Hoffman N360816G100 8000 BTU/HR 115 Volt Sealed Enclosure Cooling Air Conditioner
$5,903.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # N360816G100
North Coast Part # 880469

Features

  • Narrow design accommodates 12-in. (300-mm) deep cabinets
  • Energy efficient reciprocating compressor on N28 models
  • Energy efficient rotary compressor on N36 and N43 models
  • R407c and R134a earth-friendly refrigerants
  • Models for 115, 230 and 400/460 3-phase VAC power input
  • UL Listed to save customers time and money with agency approvals
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
  • Attractive industrial design with minimal use of visible fasteners
  • Reliable mechanical thermostat on enclosure side of the unit; indoor Air Conditioner models include digital display on ambient side
  • Galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Cut-out adapter options for enclosures with GenesisĀ® air conditioners enable users to easily transition to the new unit
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Indoor Air Conditioner models also include:
  • Active condensate management with heater strip
  • Power-off relay for door switch and other system requirements
  • Malfunction switch
  • Standard Outdoor Air Conditioner models also include:
  • Telcordia GR-487 capable
  • Corrosion-resistant components
  • Malfunction switch
  • Compressor heater
  • Head pressure control
  • 1300 W enclosure heater
  • Nominal cooling capacity:
  • N16 800 BTU/Hr. (234 W)
  • N21 2000 BTU/Hr. (586 W)
  • N28 4000 BTU/Hr. (1172 W)
  • N36 6000 & 8000 BTU/Hr. (1758 and 2344 W)
  • N43 11000 BTU/Hr. (3223 W)
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)

Notes

  • Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.
  • For G52 400/460 rated voltage, the watts are based on .65 power factor.
  • Reference the Spec Sheet in the Downloads tab for complete product specifications, performance curves and detailed drawings.

Specifications

  • Model Code: 23874
  • Bulletin Number: MCLG
  • Catalog Number: N360816G100
  • A in.: 36
  • B in.: 11.5
  • C in.: 14
  • Description: Outdoor Model without Heat Pkg.
  • Nominal BTU/Hr.: 8500
  • Nominal Watts: 2489
  • Max Current (A): 13.3
  • Fahrenheit Min.: -40
  • Voltage: 100 - 120 VAC
  • Fahrenheit Max.: 131
  • Height (in.): 36.0
  • Width (in.): 11.50
  • Depth (in.): 14.00
  • Weight (lb.): 106.00
  • Standards: UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 || CE || IP 56 Internal Loop || IP 34 on External Loop || Telcordia GR-487 capable (Outdoor)

Overview

UPC 78351023874
GTiN 00783510238742
Width 11.50 in
Color Gray
Voltage 120 Volt

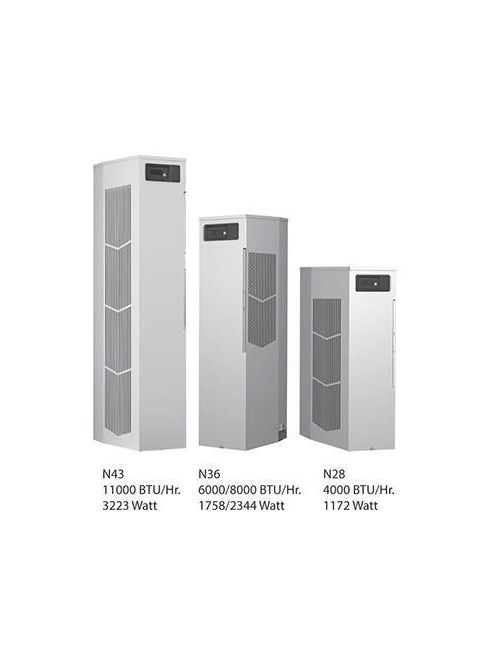

Type SPECTRACOOL N36 Narrow Air Conditioners - 6000/8000 BTU
Applications Industrial automation, Waste water treatment systems, Package handling equipment, Security and defense systems
Depth 14.00 in
Height 36 in
Weight 106.00 lb
Standard Telcordia GR-487 Capable (Outdoor),CE,UL/cUL Listed; Type 12, 3R, 4; 4X Optional; File No. SA6453,IP 34 On External Loop,IP 56 Internal Loop
Wattage 2489 Watt
Family Brand Name Hoffman
BTU Hour 8500 BTU
Max Current 13.3 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand Spectracool
