HOFF-E NHZ431226G500 AC 12K 230V OF
$9,977.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # NHZ431226G500
North Coast Part # 1096160

Features

  • Engineered specifically for hazardous location cooling. Not re-built from light industrial air conditioners
  • Attractive design with no heavy cast enclosure and minimal use of visible fasteners
  • Does not require purge and pressurized system
  • Corrosion resistant coating on ambient side components for Type 4X models
  • Corrosion resistant coating on ambient and enclosure side components for Type 4X Offshore models
  • Dust resistant coils for filterless operation in most environments
  • Cleanable, reusable aluminum mesh filter protects coils for extremely dusty and dirty atmospheres
  • Digital temperature control
  • Narrow design to accommodate 12-in (300-mm) deep cabinets
  • R134a earth-friendly refrigerants
  • Models for 115, 230 and 400/460 3-phase VAC power input
  • UL Listed to save customers time and money with agency approvals
  • Easy-Mount flanges for simple installation
  • Standard Type 4/4X models include: - Active condensate management with heater strip - Compresser Heater - Head Pressure Control - Power-off relay for door switch and other system requirements - Malfunction switch

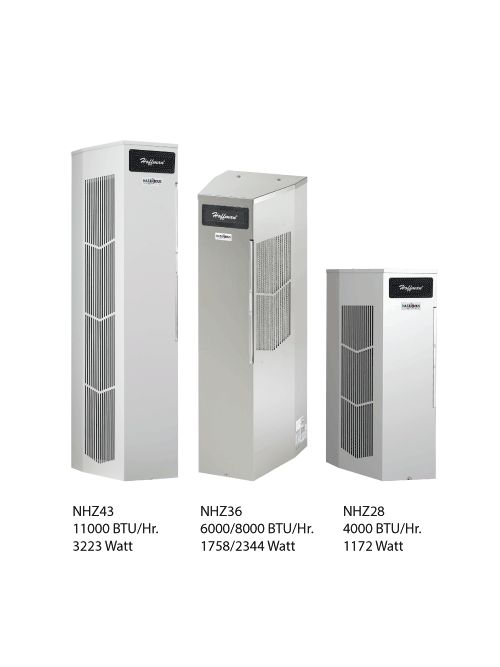

  • Nominal cooling capacities:
  • NHZ28 4000 BTU/hr. (1172 W)
  • NHZ36 6000 & 8000 BTU/hr. (1758 and 2344 W)
  • NHZ43 11000 BTU/hr. (3223 W)
  • Outdoor model operating temperature range from -40 F/ -40 C to 131 F/ 55 C (125 F/52 C on NHZ28 Series and NHZ43 Series 115V)

Notes

  • Reference the Spec Sheet in the Downloads tab for complete product specifications.
  • Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Profinet, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.

Specifications

  • Model Code: 28683
  • Bulletin Number: MCLH
  • Catalog Number: NHZ431226G500
  • Description: Stainless Steel Type 4X Offshore
  • Width (in.): 11.50
  • Depth (in.): 14.00
  • Fahrenheit Min.: -40
  • Fahrenheit Max.: 131
  • Max Current (A): 9.1
  • Weight (lb.): 127
  • Voltage: 200 - 250 VAC
  • Nominal BTU/Hr.: 11000
  • Nominal Watts: 3223
  • Height (in.): 43.0
  • Standards: UL/cUL Listed; Type 4; 4X; File No. E469720 || CE || Class 1 Div 2 Groups A, B, C, D T4

Overview

UPC 78351028683
GTiN 00783510286835
Width 11.50 in
Voltage 250 Volt
Applications Industrial
Depth 14.00 in
Height 43.0 in
Weight 127 lb
Wattage 3223 Watt
Family Brand Name Hoffman
BTU Hour 11000 BTU
Max Current 9.1 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand Hoffman
