NVENT HOF NRAS126 Rack Angle Sq Hol
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # NRAS126
North Coast Part # 681238


  • Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
  • Rack angles on communication cabinets have tapped 10-32 holes per EIA standards. Order 10-32 fasteners separately
  • Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
  • Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
  • In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
  • In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
  • Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
  • All doors are field removable and reversible with left or right hinging for installation flexibility
  • Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
  • Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
  • Doors have key-locking handles that provide security with convenient access for authorized personnel
  • Removable side panels with quarter-turn key-locking latch are inset for flush appearance
  • Two cable entry ports with caps and grommets on cabinet top for wiring ease
  • Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
  • Caster- and leveler-ready open base design. Order casters and levelers separately
  • Some models available with or without sides
  • Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
  • Multi-formed rigid doors are 14 gauge steel
  • Window made of 1/8-in. smoke-tinted acrylic
  • Formed solid sides are 14 gauge steel
  • Rack angles are 12 gauge steel
  • Ground studs provided on doors and covers


  • UL 1863 requires that the cabinet be tested with a load four times the rating. The cabinet was tested to 4000 lb. (1814 kg) without failure to meet the 1000 lb. (454 kg) rating. Contact Hoffman if other loading specifications are required.


  • Net Series Rack Angles
  • Net Series Caster Kit
  • Net Series Leveler Kit
  • Net Series Joining Kit
  • Net Series Tool-less (Snap-in) Blanking Panels for 19-in. Racks
  • Net Series Vertical Tie-Down Cable Manager
  • Net Series Tool-less Shelf


  • Bulletin Number: DC
  • Model Code: 16813
  • Ship Wt. Std. Pkg. (lbs): 5.0
  • Interchangeable: False
  • Catalog Number: NRAS126
  • Hole Type: Square
  • Length in.: 40.37
  • Use with Net Series Cabinet H x W: 1245 x 600


UPC 78351016813

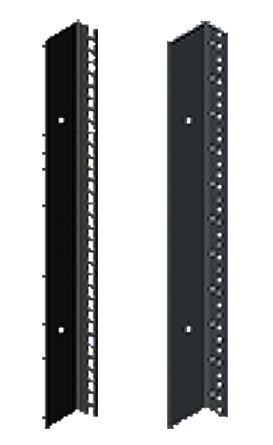

Item Long Description Net Series Rack Angles, fits 1200x600mm, Black, Steel
GTiN 00783510168131
Length 40.37 in
Finish Black
Color Black
Type Net Series Rack Angles
Material Steel
Applications Rack angles are available with either 10-32 tapped or square mounting holes. Communication and server cabinets can use either tapped-hole or square-hole rack angles. Finish is RAL 9005 black, low-gloss smooth polyester powder paint. Shipped in sets of two with two mounting brackets and mounting hardware.
Family Brand Name Hoffman
Sub Brand Hoffman
