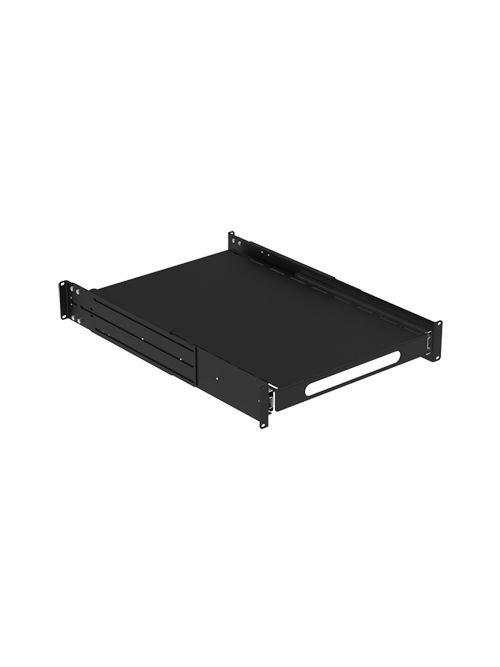

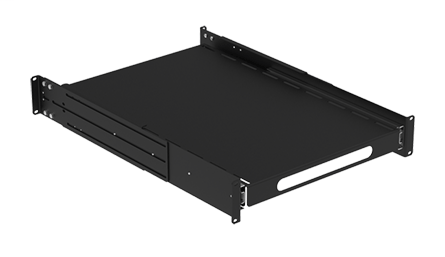

Hoffman P19SHP68B 16.72 x 19 Inch Solid Black Steel 2-Unit Sliding Equipment Shelf
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$661.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # P19SHP68B
North Coast Part # 606691

Features

  • Shelf is 16-gauge steel with 12-gauge steel supports
  • Mounts to the front surface of front and back rack angles
  • Load rating is 150 lb. (68 kg) with four rack angles mounted directly to frame verticals; load rating reduced to 75 lb. (34 kg) with front rack angle mounting only
  • Rack accessories that are shorter than the enclosure depth can be mounted to rack angles or frame accessory brackets attached to grid straps. Order these items separately.

Specifications

  • Material: Mild Steel
  • Max Depth (D) (inch): 37.4
  • Max Depth (D) (millimetre): 950
  • Shelf Pullout (inch): 17
  • Shelf Pullout (millimetre): 432
  • Fits Rack: 19 in.
  • Rack Units: 2
  • Modification Services: Yes
  • Color: Jet Black
  • Color Code: RAL 9005
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52

Categories

Overview

GTiN 00783510100131
Finish RAL 9005 Black
Color Black
Type Sliding Equipment
Material Steel
Applications Can be used on 2-Post Rack or Cabinet with Front Rack Angles only by Reversing Support Bracket
Family Brand Name Hoffman
Rack Unit 2
Sub Brand Hoffman
Product UPC 78351010013
Width 16.2 in
Depth 37.4 in
Height 16.72 in
Load Capacity 150 lb
Used With 19 in Rack
Thickness 1.52 mm
