Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing

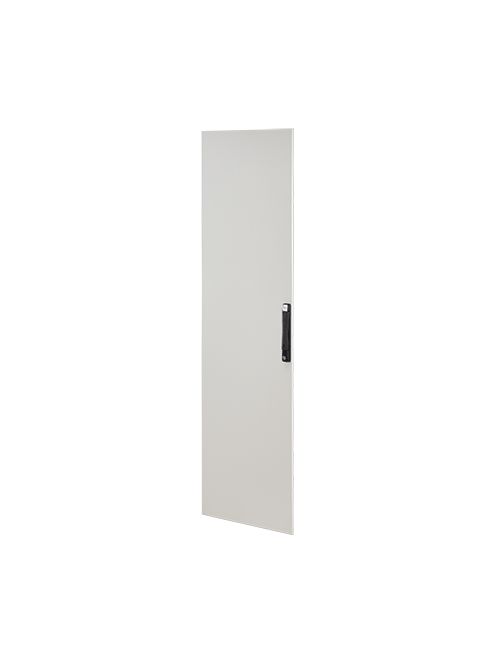

Manufacturer Hoffman Engineering
Mfg Catalog # P2D208
North Coast Part # 1276670


  • Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
  • Low-profile Swing Handle with key lock; other options available
  • Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Single doors available for frames up to 1000 mm wide
  • Overlapping double doors available for frames 800 mm wide and greater
  • Door bar system on all doors
  • Timed latch engagement to ensure top and bottom of door catch reliably
  • Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
  • 3-point latch system for doors ≥ 1000 mm in height
  • Key lock handle standard; other options available


  • Fits Frame (H x W): 2000 x 800 millimetre
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Material: Mild Steel
  • Thickness (T): 1.9 millimetre


UPC 78351031383
GTiN 00783510313838
Type Single
Material 14 ga Mild Steel
Family Brand Name Hoffman
Blade Dimensions 31.4 in W x 78.1 in H
Used With 800 mm W x 2000 mm H Frame
Sub Brand ProLine G2
Applications Controls and Drives; Power Distribution
Finish Powder Coated
Color Gray
Thickness 1.9 Millimetre mm
