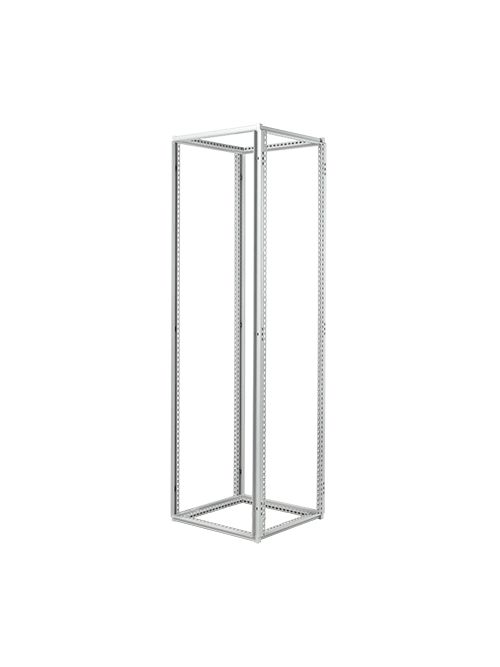

NVENT HOF P2F22108 FRAME 2200x1000x
Product image thumbnail 0
Product image thumbnail 1
$1,484.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # P2F22108
North Coast Part # 1691524

Features

  • 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
  • RAL 7035 textured light-gray polyester powder paint finish
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
  • Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
  • Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
  • Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
  • Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately

Specifications

  • Max Subpanel Size: 82.9 x 36.5 inch
  • Max Rack Mount Unit: 47
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Material: Mild Steel
  • Thickness (T): 2.66 millimetre

Related Products

Accessory

  • P2ACU22

Overview

UPC 78351031775
GTiN 00783510317751
Width 39.32 in
Depth 31.26 in
Height 31.5 in
Family Brand Name Hoffman
Rack Unit 47
Type Frame Accessories
Applications Controls and Drives; Power Distribution
Finish Powder Coated
Color Gray
Thickness 2.66 Millimetre mm
